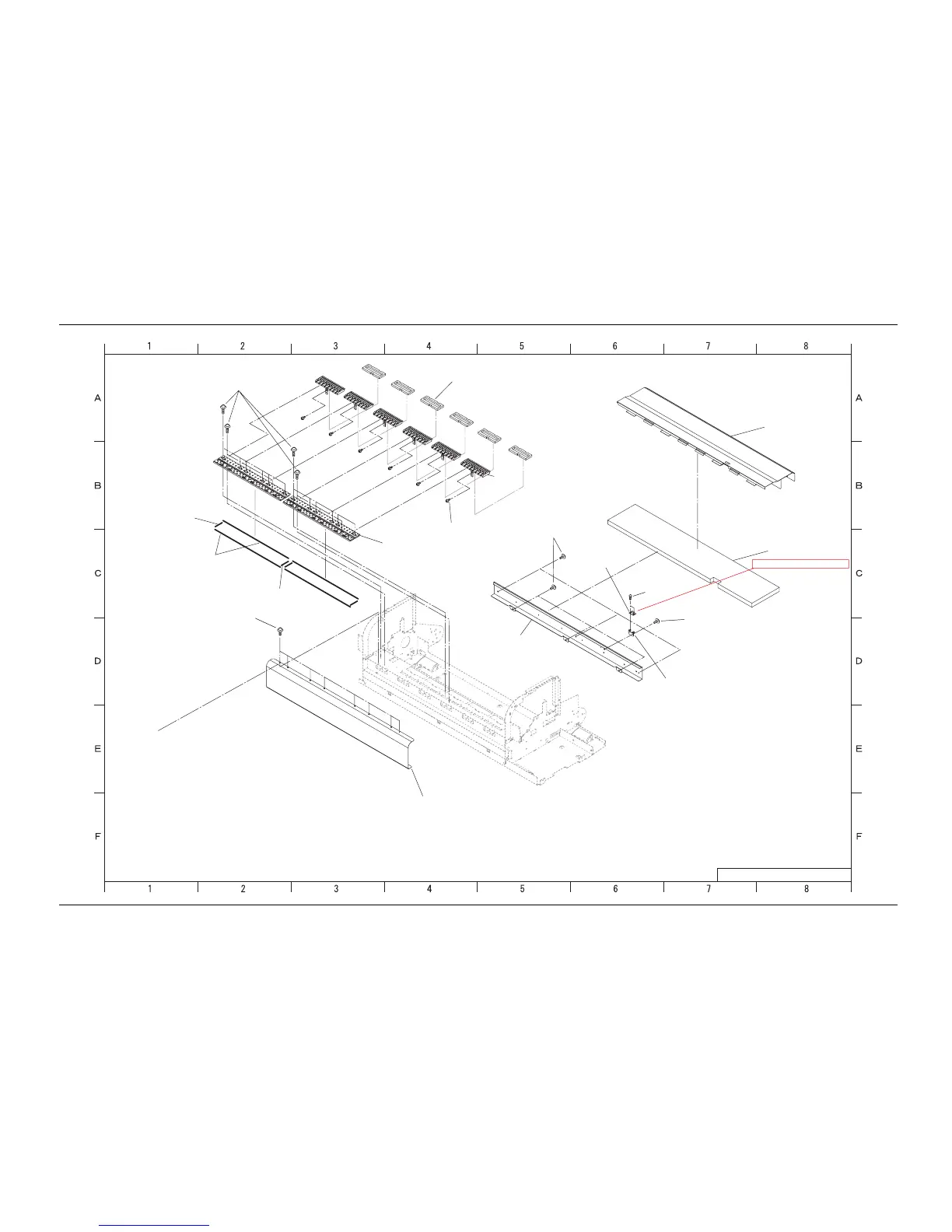

RJ-900C, RJ-901C Maintenance Manual Supplement Exploded View
9
Head Board Assy
2006.04.19 Rev.A
Model Name : RJ-900C, RJ-901C
Media guide Assy
Exploded View
Hexagon socket head screw with spring washer
and flat washer M3x6, Ni-3
MS-5203006A
Cup screw M2x6, Ni-3
MS-06020061
Tapping screw M3x6, S tight cup
MS-5203006A
Tapping screw M3x6,
S tight cup
MS-5203006A
Pan-head screw with spring washer
and flat washer M3x8, Ni-3
MS-05030081
Platen
DE-36523
Platen seal
DE-48560
Hexagon socket head screw
with spring washer and flat washer
M3x6, Ni-3
Sub platen
DE-12569
Sub platen seal
DF-48612
Sub platen seal
DF-48559
Sub platen seal
DF-48612
Media guide R2, A1
DE-22173
Heat insulator
DE-36666 (A1)
DE-36662 (A0)
PE sensor plate
DF-48561
P_PEAR sensor
assembly
DF-48629
Media guide F
DE-22138 (A1)
DE-12566 (A0)
Media guide R1
DE-22172 (A1)
DE-12584 (A0)
P_REAR sensor assembly DF-48982
