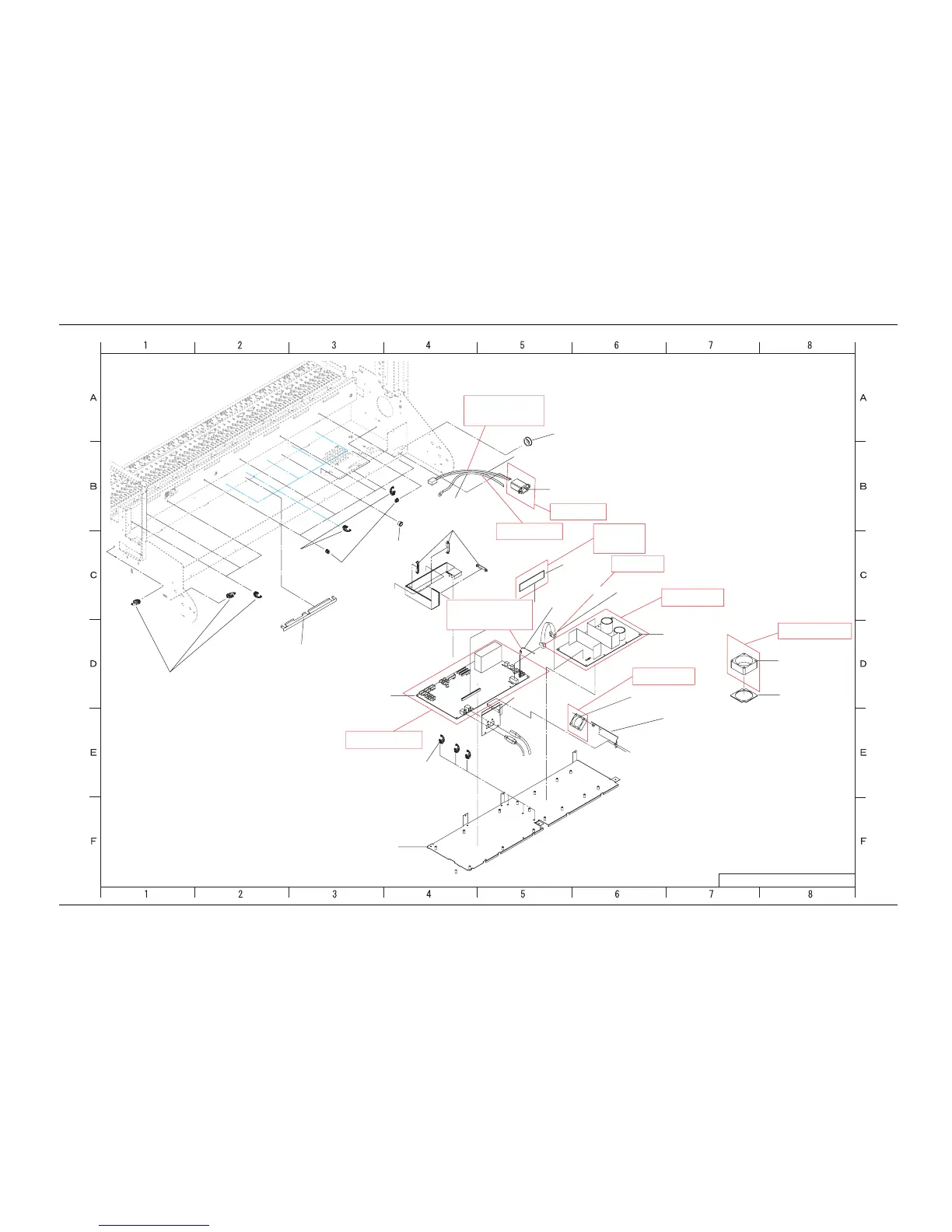

RJ-900C, RJ-901C Maintenance Manual Supplement Exploded View
10
Foot Assy 1
Board Assembly Components
2006.04.19 Rev.A
Model Name : RJ-900C, RJ-901C
Exploded View
Electric wiring guard
DE-36732
Flat clamp FCR35
E-FCR-35-V0
MAIN board
assembly (TX)
DE-36561
Connector panel 2
DE-36620
128MB SODIMM
DF-49495
Noise filter
DF-48783
Bush OLBT-26
DF-47187
Cooling fan (24V) assembly
DF-46439
Cooling fan (5V) assembly
DF-48724
Fan bracket 3
DE-36621
Clamp 2SV0
DF-47183
Board bracket 2
DE-22219
Power source assembly
DE-36583
Cooling FAN relay A1
assembly
DF-48726
Fan seal
DF-48699
Clamp RMS-1VO
DF-48558
A1 : x 4
A0 : x 7
Bush OLBT-13
DF-47186
Noise filter relay A1 assembly
DF-48783
Noise filter FG cable assembly
DF-48783
DC cable assembly
DF-48615
Clamp 2SV0
DF-47183
Clamp 2SV0
DF-47183
256MB SODIMM
DF-49496
MAIN board (TX) assembly
DF-49714
Power board assembly
DF-48975
Cooling FAN (24V) assembly
DF-49022
Cooling FAN_assembly
DF-49023
Noise filter assembly
DF-48981
SODIMM128ASSY
DF-49715
Cooling FAN_relay A1_assembly
DF-48998
Cooling FAN_relay A0_assembly
DF-48999
Noise filter relay A1_assembly
DF-49005
Nose filter FG_assembly
DF-49019
DC cable assembly
DF-48980
Noise filter relay A0_assembly
DF-49006
SODIMM256ASSY
DF-49716
