RJ-900C, RJ-901C Maintenance Manual Supplement Exploded View
11

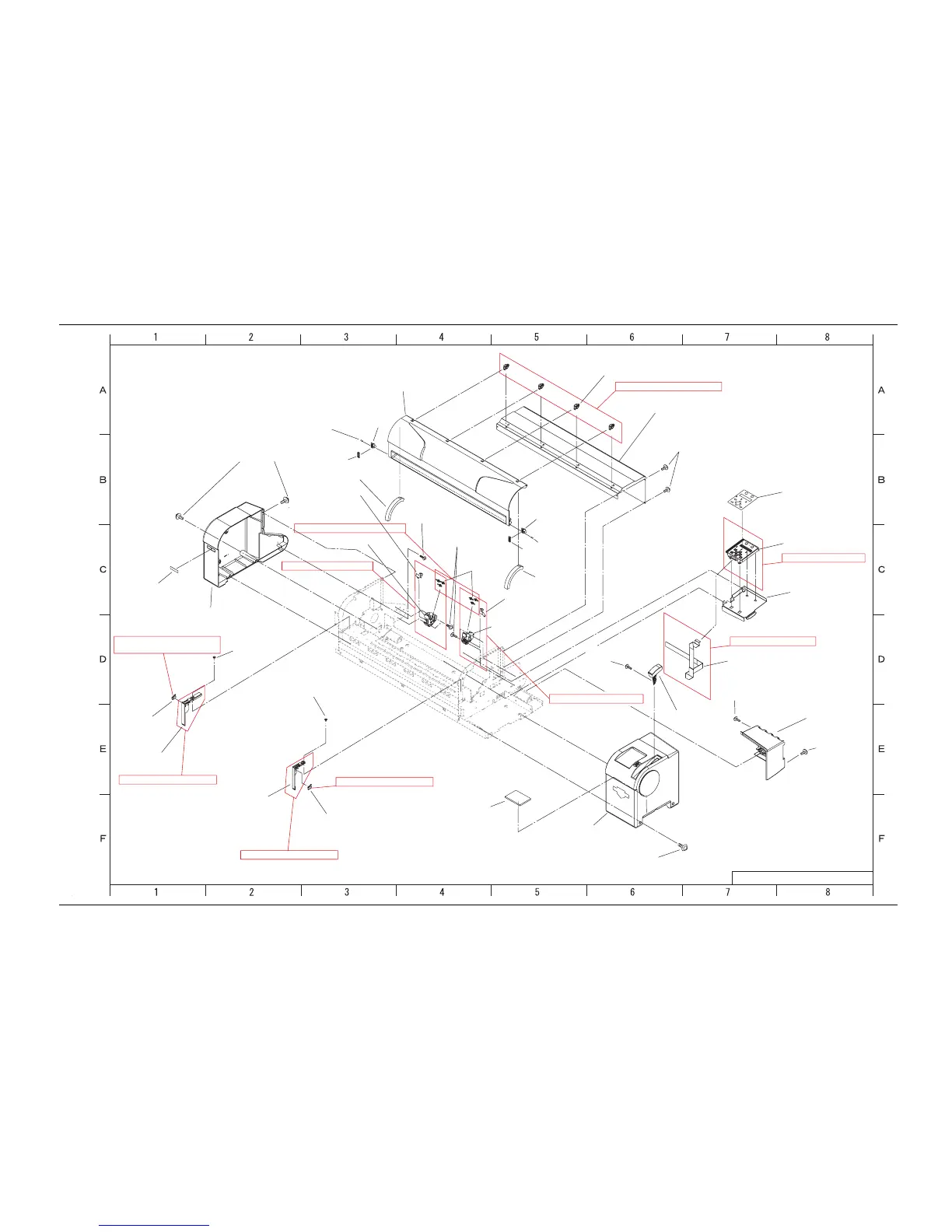

Exploded View
2006.04.25 Rev.B
Cover Assy
Model Name : RJ-900C, RJ-901C
Tapping screw
M3 x 6 S tight cup
MS-5203006A
Tapping screw M4 x 8 S tight cup
MS-5204008A
Tapping screw M4 x 12
P tight binding (black)
MS-5804012B
Tapping screw M4 x 8 S tight cup
MS-5204008A
Pan-head screw with spring washer and flat washer M3 x 5
MS-0503005A
Top cover
DE-12553 (A1)
DE-12554 (A0)
Front cover receiver
DE-36499
Front cover buffer
DF-49236
Front cover buffer
DF-49236
Side cover L
DE-12551
Side cover R
DE-12552
Absorber R
DF-49229
I/H cover
DE-12557
Tapping screw
M4 x 8 S tight cup
MS-5204008A
Pressure lever cap
DE-36552
P tight binding screw M4 x 12
MS-58040101
P tight binding screw M4 x 12
MS-58040101
Panel stay
DE-22146
Scroller FG plate R
DF-48543
Scroller receiver roller
DF-48542
Scroller FG plate L
DF-48544
Scroller receiver L
DE-22131
Scroller receiver R
DE-22130
Sensor cover R
DE-22129
Sensor cover L
DE-22128
Tapping screw
M3 x 6 S tight cup
MS-5203006A
Tapping screw
M3 x 6 S tight cup
MS-5203006A
Panel tape wire
DF-48616
Panel unit
DE-22147
Panel Sheet
DE-36550
logo plate
DF-45873
Cover L sensor
assembly
DF-48641 (A1)
DF-48642 (A0)
Cover R sensor assembly
DF-48640
F cover flag
DF-49230
F cover flag
DF-49230
Slotted pin A type 3 x 10
DF-49231
lotted pin A type
3 x 10
DF-49231
F cover flag rubber
DF-49222
F cover flag rubber
DF-49222
Front cover
DE-12555 (A0)
DE-12556 (A0)
Scroller receiver roller assembly DF-49063
Front cover receiver assembly DF-49056
Sensor cover L_assembly DF-49057
Sensor cover R_assembly DF-49058
Panel unit assembly DF-48977
Panel cable assembly DF-49014
Roll receiver L assembly DF-49066
Roll receiver R assembly DF-49067
Cover R sensor assembly DF-49011
Cover L sensor A1_assembly DF-49012
Cover L sensor A0_assembly DF-49013
