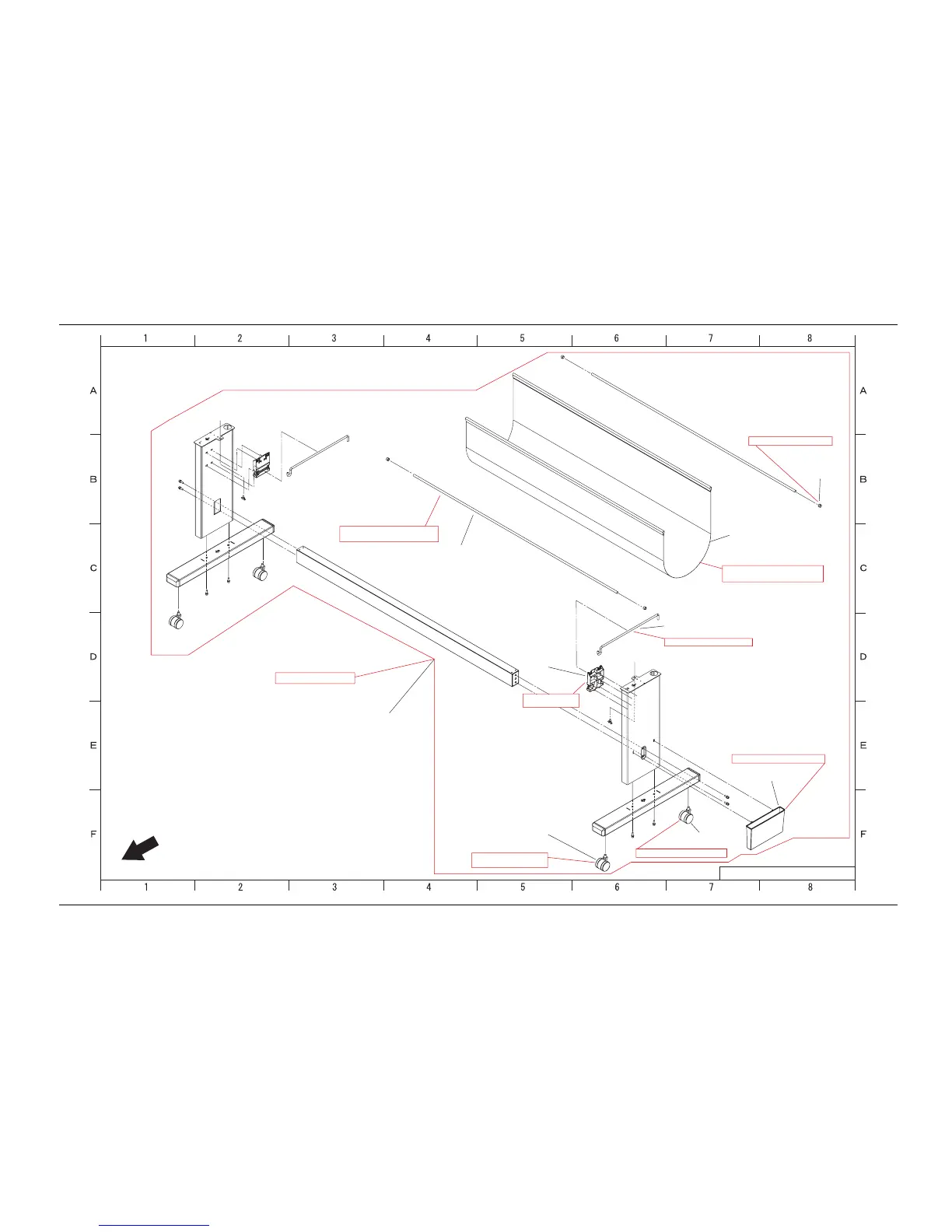

RJ-900C, RJ-901C Maintenance Manual Supplement Exploded View
12
Foot assy
2006.04.19 Rev.A
Model Name : RJ-900C, RJ-901C
Exploded View
Caster with a lock assembly
DE-48661
Book holder assembly
DF-22174
Basket cloth A0 assembly
DF-48719
Basket cloth A1 assembly
DF-48718
Free caster assembly
DF-49081
Basket arm assembly
DF-48701
Arm holder assembly
DF-49075
Stay cap assembly
DF-49074
Basket stay A0 assemblyޓDF-48703
Basket stay A1 assembly DF-48702
Leg assembly, A0ޓDE-12588
To Flame assembly
Front
To Flame assembly
Book holder assembly ޓDF-49076
Basket cloth A0 assembly ޓDF-49073
Basket cloth A1 assemblyޓ DF-49072
Caster with a lock assembly
DF-49070
Free caster assemblyޓDF-49071
Basket arm assemblyޓDF-49077
Arm holder assembly
DE-22182
Stay cap assemblyޓDF-49074
Basket stay A0 assemblyޓDF-49079
Basket stay A1 assemblyޓDF-49078
A0 leg assemblyޓDF-49069
