Xerox 7142 Service Manual

4 Parts Replacement RJ-901C/RJ-900C Maintenance Manual
4-38

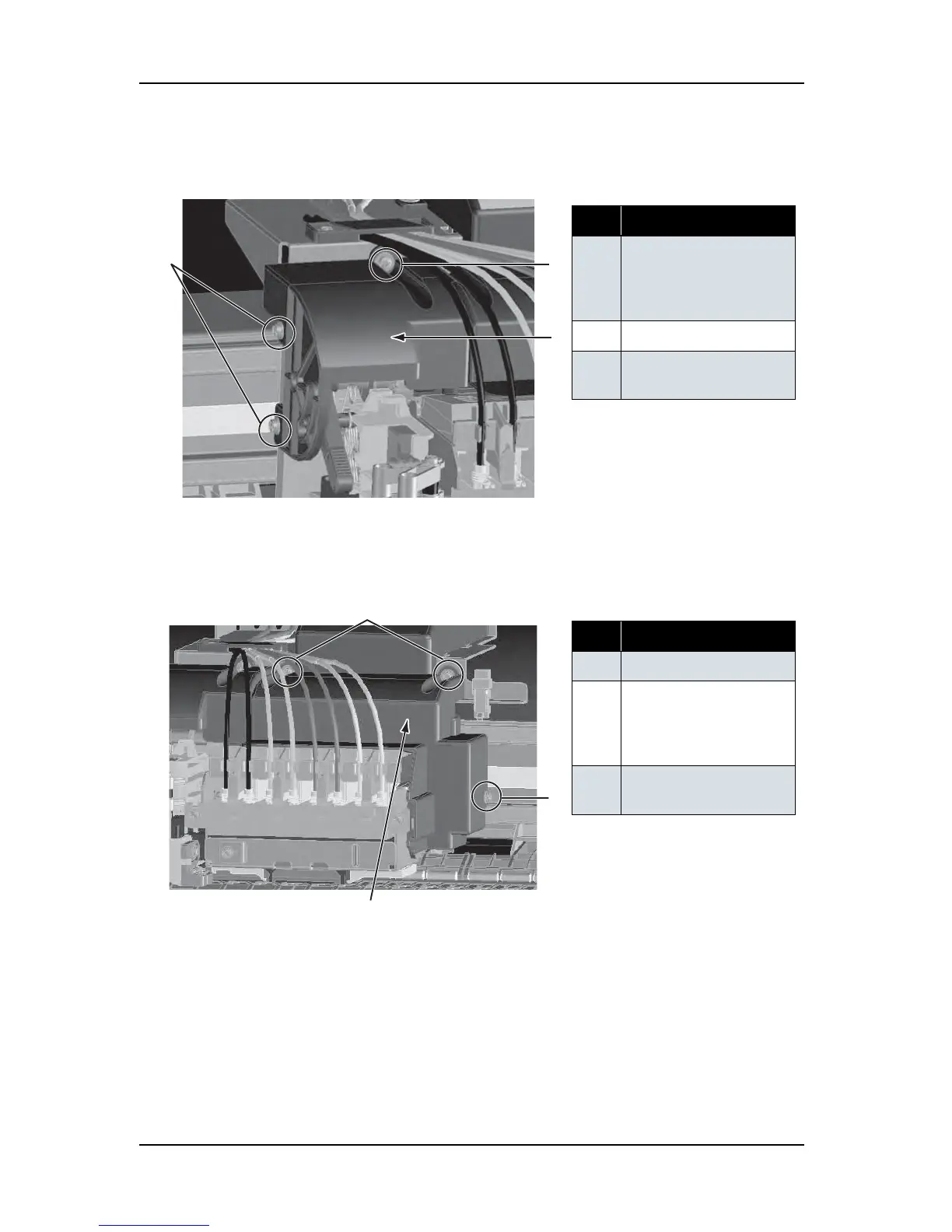

5. Remove the cable cover L-retaining screw ( pan-head screw with spring washer and flat washer M3 × 8 W
sems: 2
) (tapping screw M3 × 8, S tight cup: 1pce).
6. Remove the cable cover R-retaining screw (tapping screw M3
× 8, S tight cup: 2pce) (pan-head screw
with spring washer and flat washer M3
× 8 W sems: 1).
7. Remove the cable cover.
No. Part name
1 Cable cover L screw (M3
× 8 pan-head screw with
spring washer and flat
washer W sems
)
2
Cable cover L
3 Cable cover L screw (M3
× 8, S tight cup)
No. Part name
1 Cable cover R
2
Cable cover R screw (M3
×
8 pan-head screw with
spring washer and flat
washer W sems: 1)
3 Cable cover R screw (M3
×
8, S tight cup: 2)
1
2
3
3
2
1
