RJ-901C/RJ-900C 　 Maintenance Manual 4 Parts Replacement
4-39
8. While rotating the damper fixing material, remove the eight ink tubes from the damper fixing material
hook.
9. Remove the damper fixing material.
10. Remove the eight damper assemblies connected to the print head that needs to be replaced, with a flat-
head driver or other tools.
CAUTION
• Do not press the transparent film on the damper assembly with your hand. Doing so may
discharge the ink filled inside the damper assembly.
• Be careful not to damage the transparent film on the damper assembly.

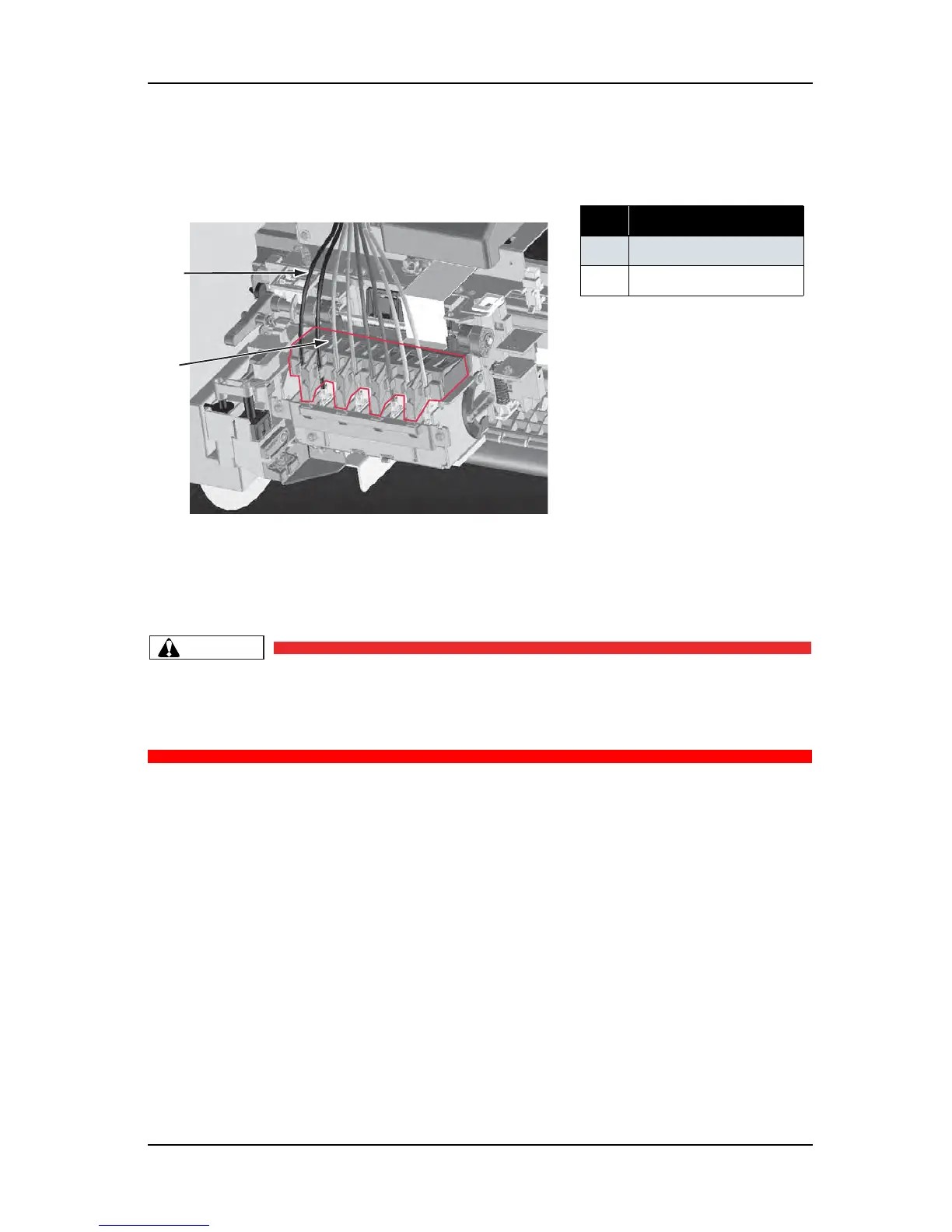

No. Part name
1 Ink tube
2 Damper fixing material
2
1
