4 Parts Replacement RJ-901C/RJ-900C　 Maintenance Manual
4-42
1. Release the sensor cables in the front of the cutter holder assembly from the clamps (3 points) on the front
of the cutter holder assembly.
2. Remove the height adjusting lever spring from the height adjusting lever.
3. Remove the cutter holder-retaining screw (pan-head screw with spring washer and flat washer M3
× 8 W
sems: 2pcs).
4. Remove the cutter holder assembly from the carriage.
5. Replace the parts.
6. To reassemble the unit, reverse the removal procedure.
7. Perform adjustments by following the instructions in "7.2 Adjustment Item" p.7-3.
(2) Replacing Cutter Solenoid Assembly
1. Remove the cutter holder assembly.

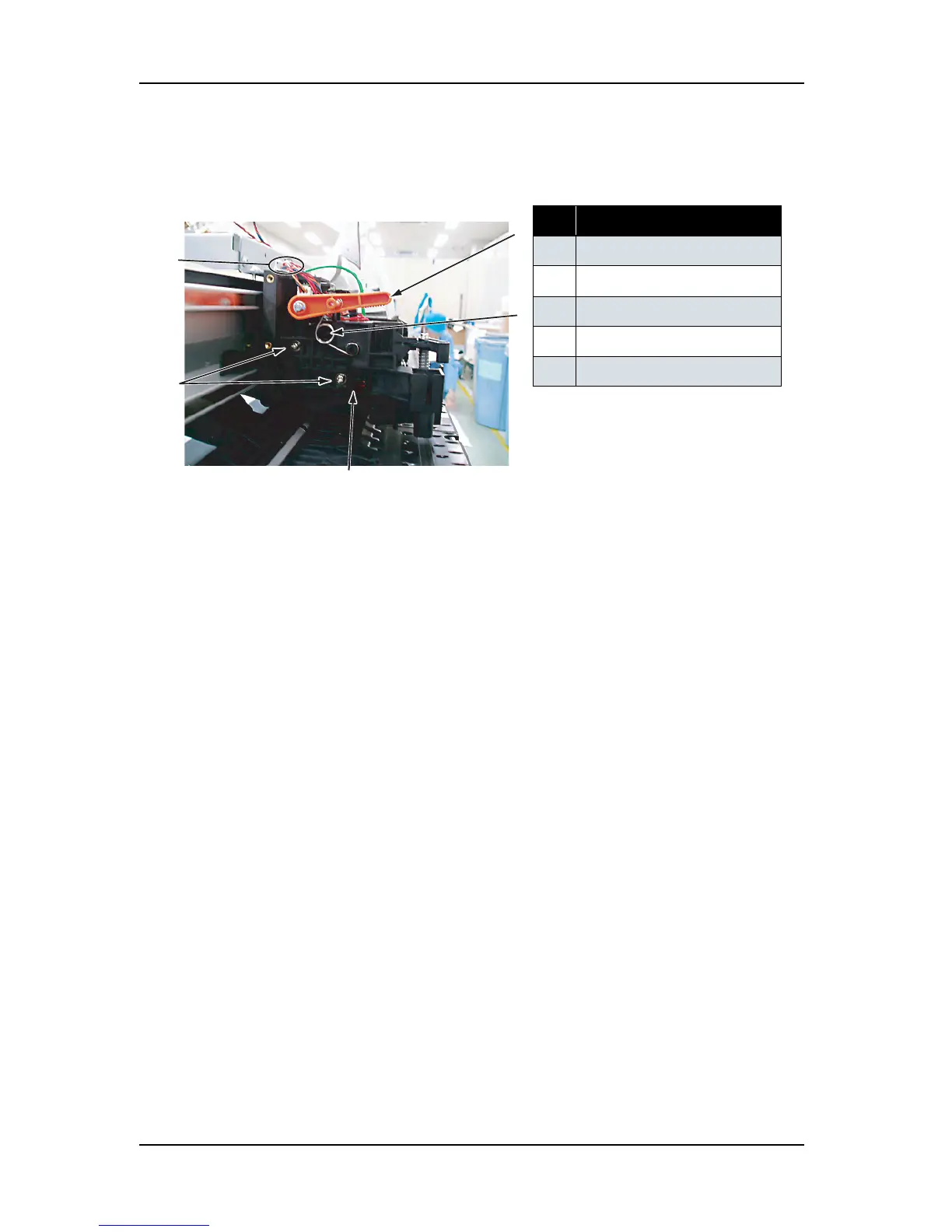

No. Part name
1 Clamp
2
Cutter holder assembly screw
3 Cutter holder assembly
4 Height adjusting lever spring
5 Height adjusting lever
1
2
3
4
5
