RJ-901C/RJ-900C 　 Maintenance Manual 4 Parts Replacement
4-43
2. Push the tab of the CR lock kicker with a sharp-pointed tool or a flat-head driver to remove the CR lock
kicker.
3. Remove the cutter solenoid assembly iron-core and the cutter solenoid spring.
4. While opening the cutter holder assembly upper tab, push out the cutter solenoid assembly from the cutter
holder assembly bottom with a flat-head driver or other tools, then remove it.
5. Remove the cutter solenoid terminal connector.
6. Replace the cutter solenoid assembly.
7. To reassemble the unit, reverse the removal procedure.

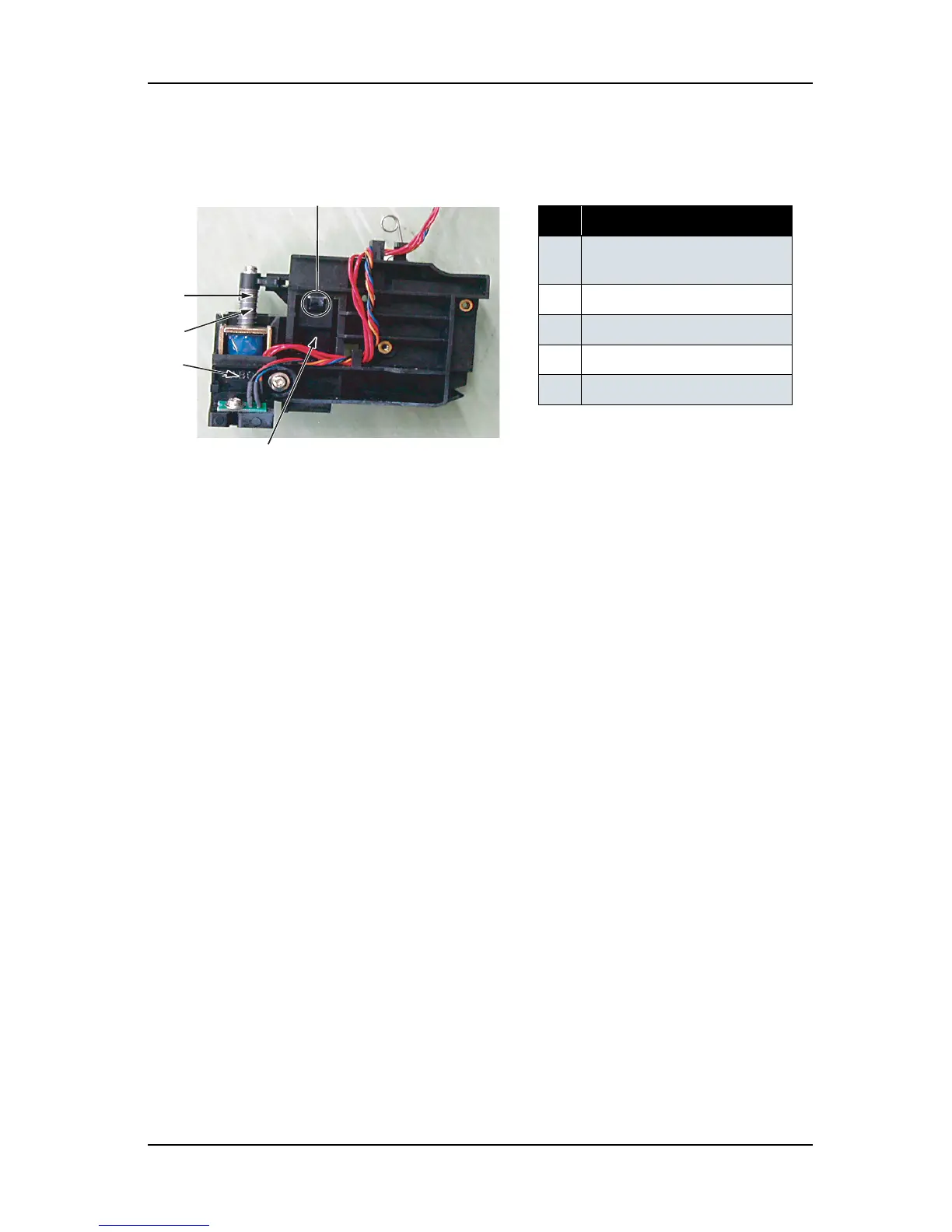

No. Part name
1 Cutter solenoid assembly iron-
core
2
Cutter solenoid spring
3 Cutter solenoid assembly
4 CR lock kicker
5 CR lock kicker tab





