4 Parts Replacement RJ-901C/RJ-900C　 Maintenance Manual
4-48

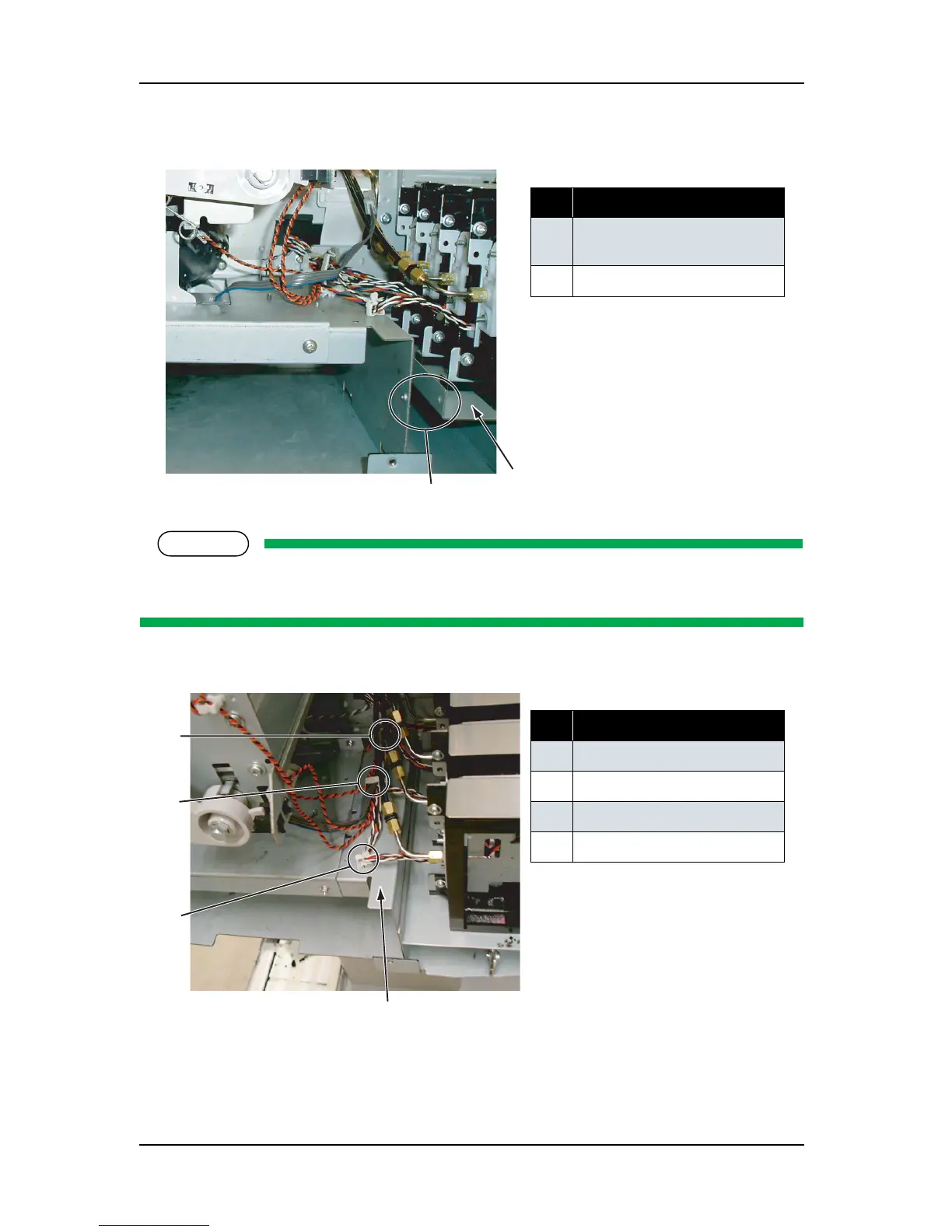

2. To ensure enough workspace, shift the ink holder base backward and get a clearance of about 20mm.
NOTE
If the ink holder is shifted more than necessary, the tube may be come off. Do not shift the ink holder
more than the length specified.
3. Remove the cable above the maintenance base 1 from the clamps.
No. Part name
1 Clearance to ink holder base
(approx. 20mm)
2
Ink holder base
No. Part name
1 Clamp 1
2
Clamp 2
3 Clamp 3
4
Maintenance base 1
1
2
1
2
3
4
To Next Page
