RJ-901C/RJ-900C 　 Maintenance Manual 4 Parts Replacement
4-49

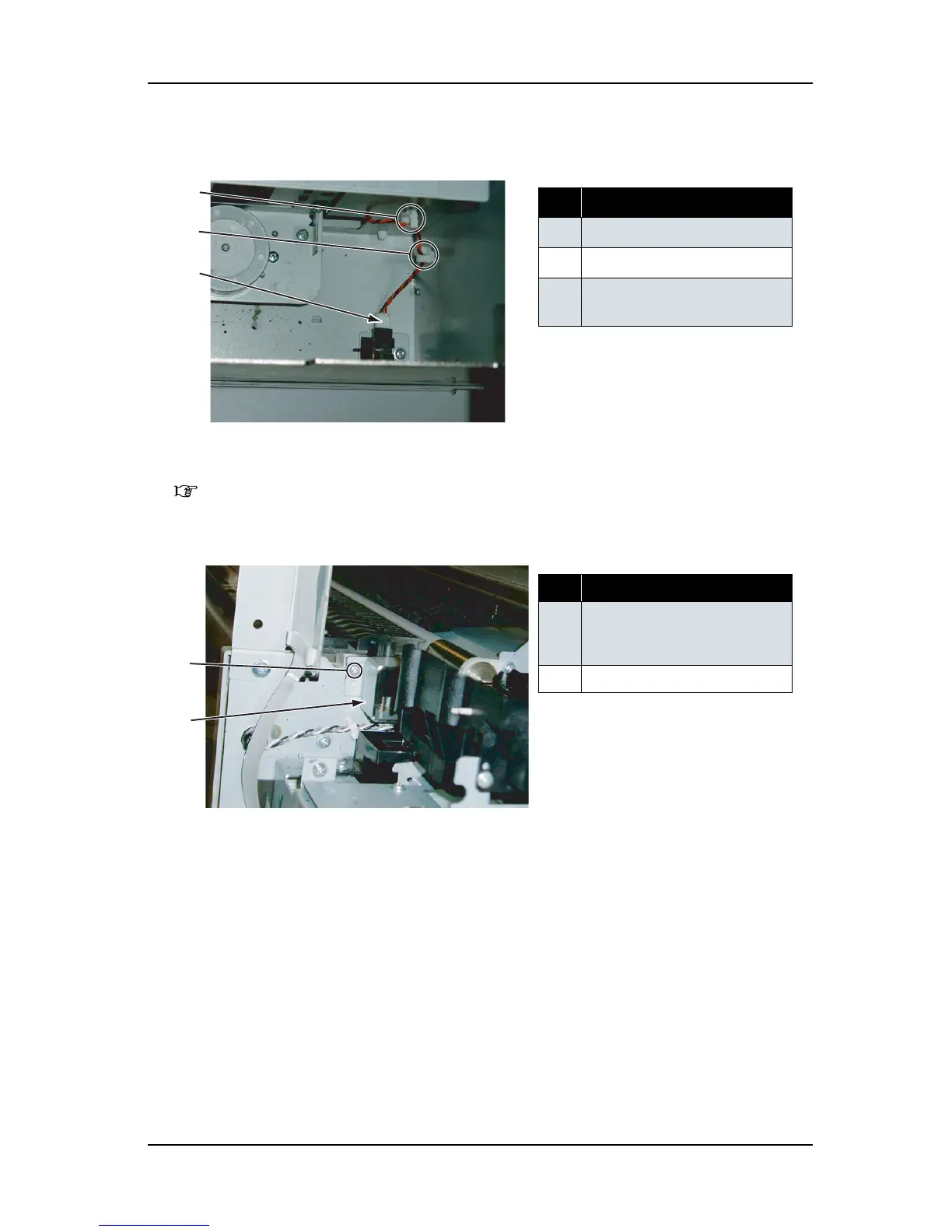

4. Remove the waste fluid box sensor connector, then remove the cable from the clamp.
5. Remove the flushing box assembly.
"4.7.4 Replacing Flushing Box Assembly" p.4-54
6. Remove the Lock bracket-retaining screw (Tapping screw M3x6, S tight cup: 1pce).
No. Part name
1 Clamp 1
2
Clamp 2
3 Waste fluid box sensor
connector
No. Part name
1
Head lock-retaining screw
(Tapping screw M3x6, S tight
cup)
2
Lock bracket
1
2
3
1
2
To Next Page
