Xerox Color C75 Press User Manual

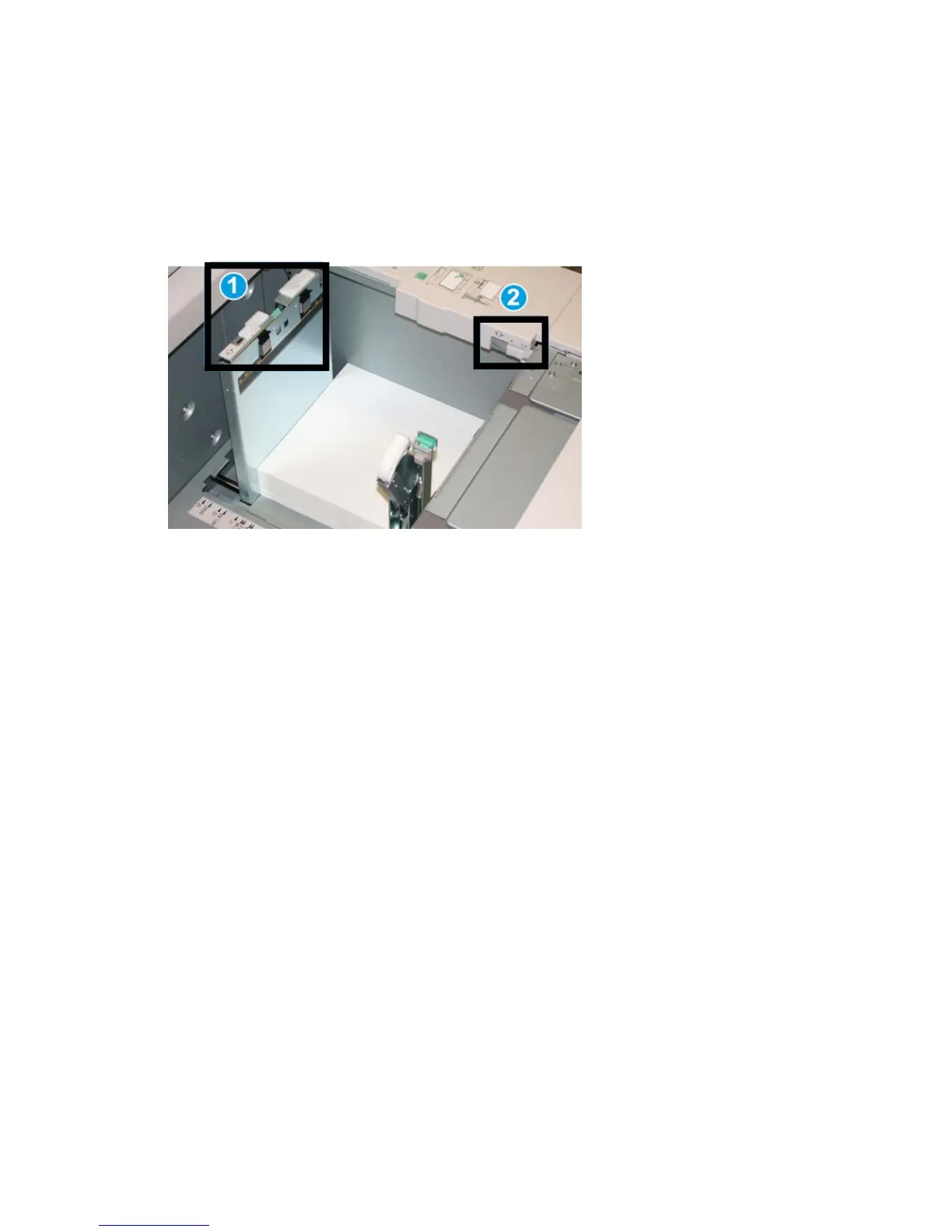

Skew adjustment levers
The skew adjustment levers are found in all paper trays. These levers are used to improve
paper feed accuracy and to reduce paper skew problems.
1. Rear skew adjustment lever
2. Right-side skew adjustment lever
• These levers should remain in their default position. The position of these levers
should be changed only when there is a skew problem when running a specific print
job and/or specific media type.
• Changing the skew adjustment levers from their default position may cause more
skew problems when running certain media types, such as coated, label, transparency,
and film.
Use the following procedure to set the skew adjustment levers.
1. Pull out the tray slowly until it stops.
2. Slide the rear skew adjustment lever to the right.
3. Gently push in the tray until it comes to a stop.
4. From the Tray Properties window, enter the correct paper information, including size,
type, weight, and if necessary, paper curl and/or alignment option.
5. Select OK to save the information and close the Tray Properties window.
6. Run your print job.
• The paper is fed accurately without skew and the printed output is satisfactory;
your task is complete.
• The paper is skewed and the printed output is unsatisfactory; proceed to the next
step.
7. Pull out the tray slowly until it stops.
13-7Xerox
®
Color C75 Press
User Guide
Oversized High Capacity Feeder (OHCF), 1 or 2 trays (Trays 6/7)

Xerox Color C75 Press Specifications

General

Copy speed (black, normal quality, A4)	75 cpm
Maximum print size	A3 (297 x 420 mm)
Media types supported	64 – 300 g/m2
Standard input capacity	1900 sheets
Maximum resolution	2400 x 2400 DPI
Standard printer languages	PCL 5c, PCL 5e, PCL XL, PDF 1.7+, PostScript 3
Standard interfaces	USB 2.0
Networking features	TCP/IP, Novell, NDS, IPX/SPX, IPP AppleTalk, IPP, NetBEUI, DHCP
Internal memory	- MB
Maximum duty cycle	300000 pages per month
Power requirements	100-240 VAC, 50/60 Hz
Dimensions (WxDxH)	1714 x 777 x 1372 mm
Type	Digital copier
