Xerox Color C75 Press User Manual

Note
The top covers cannot be opened during normal operation or when the machine is idle.
The covers can be opened only when an indicator is lit and a jam/fault occurs within the
SquareFold Trimmer Module.

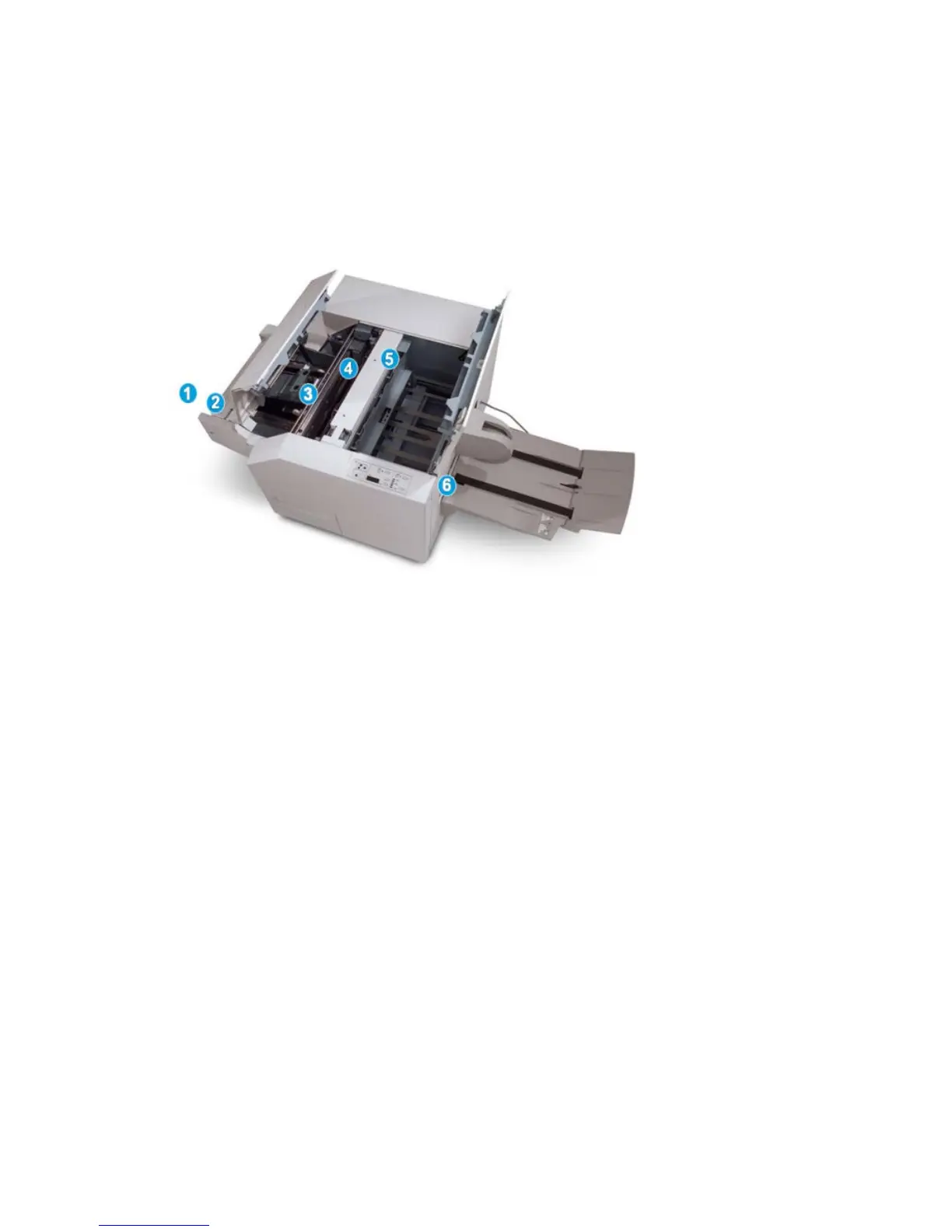

Paper path
1. The booklet leaves the booklet area of the finisher and enters SquareFold Trimmer
Module.
2. The Booklet Exit sensor (in the SquareFold Trimmer Module) detects the lead edge
(spine) of booklet and moves the booklet to square fold area.
3. Once the booklet spine reaches the square fold area, the booklet is clamped and
the square-folding operation begins.
4. The booklet is flattened and the spine squared according to the square-fold setting
indicated on the control panel.
5. After the booklet is flattened and the spine squared, it is moved to the trimmer area.
a. Based on the finished booklet size, the booklet is moved until the trail edge
reaches the trimmer cutter.
b. The trail edge is trimmed/cut (based on the finished booklet size entered for the
Trimmer Mode Setting).
6. The booklet then moves to the exit area where it is transported to the Booklet Output
Tray.
18-3Xerox
®
Color C75 Press
User Guide
SquareFold Trimmer Module

Xerox Color C75 Press Specifications

General

Copy speed (black, normal quality, A4)	75 cpm
Maximum print size	A3 (297 x 420 mm)
Media types supported	64 – 300 g/m2
Standard input capacity	1900 sheets
Maximum resolution	2400 x 2400 DPI
Standard printer languages	PCL 5c, PCL 5e, PCL XL, PDF 1.7+, PostScript 3
Standard interfaces	USB 2.0
Networking features	TCP/IP, Novell, NDS, IPX/SPX, IPP AppleTalk, IPP, NetBEUI, DHCP
Internal memory	- MB
Maximum duty cycle	300000 pages per month
Power requirements	100-240 VAC, 50/60 Hz
Dimensions (WxDxH)	1714 x 777 x 1372 mm
Type	Digital copier
