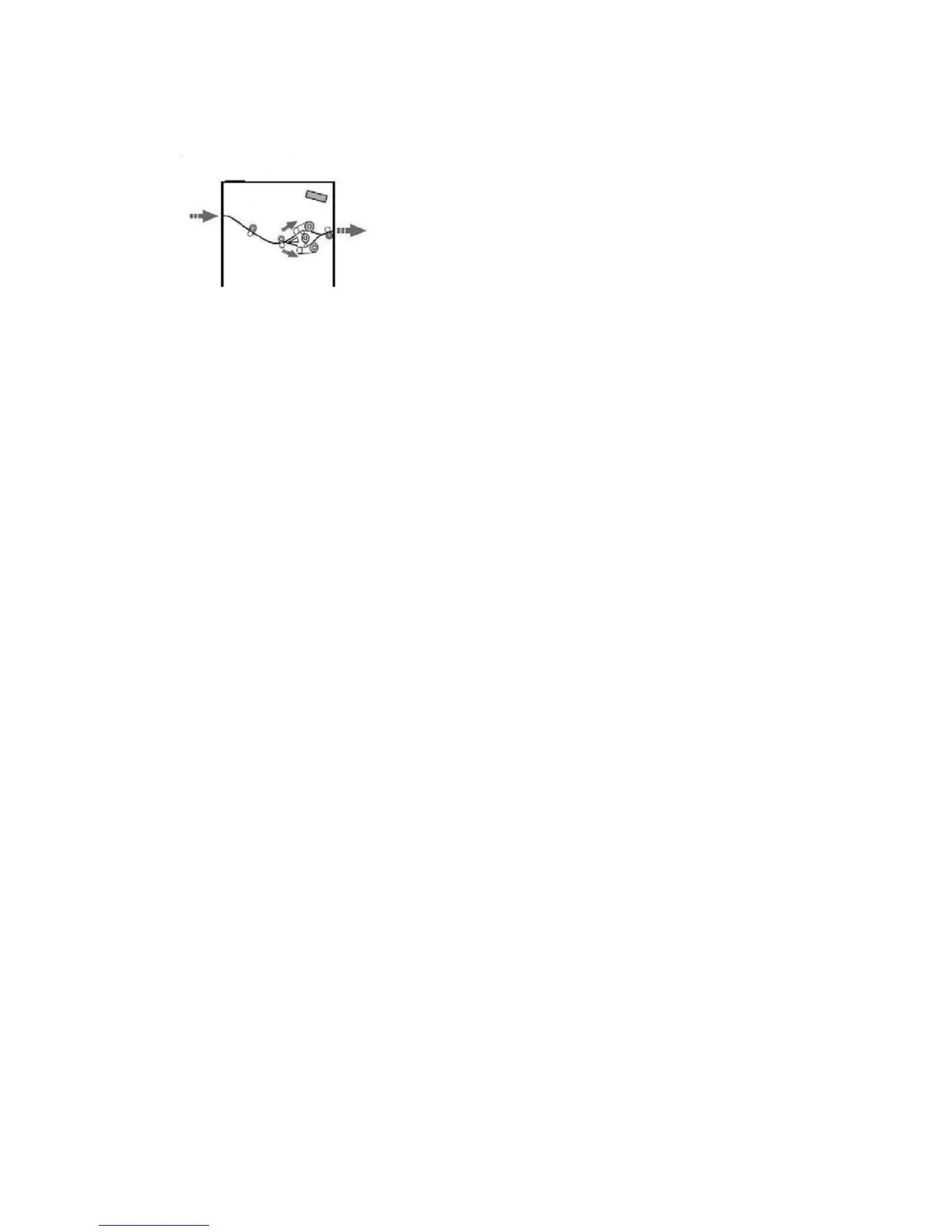

Paper path
As media enters the Interface Module, it is fed to the Interface Module decurler for
paper curl correction. The Interface Module decurler has both upper and lower decurler
rolls that apply pressure to the media based upon the following:
• System default
• Manual selections made at the Interface Module control panel
Based on the paper curl (decurl) settings, the Interface Module decurler gate routes the
paper to either the up-curl (cupped) path, or the down-curl (bridged) path. The degree
of pressure is applied independently to the upward and downward decurler arms.
From the Interface Module decurler, the print media is cooled and routed from the
Interface Module to the optional finishing device(s) that is/are connected to your
machine.
Paper curl settings on the Interface
Module
Preset decurler settings
The Interface Module is designed with several automated presettings for controlling
paper curl. When using these settings, the amount of curl correction is automatically set
by the Interface Module decurler. Therefore, if paper curl is a problem, use one of the
preset Interface Module decurler settings in order to eliminate the problem.
When the media passes through the Interface Module decurler, you are notified of the
current amount of curl correction through the various LEDs on the Interface Module
Control Panel. If you require more curl correction, you can manually select curl correction
from the Interface Module Control Panel.
