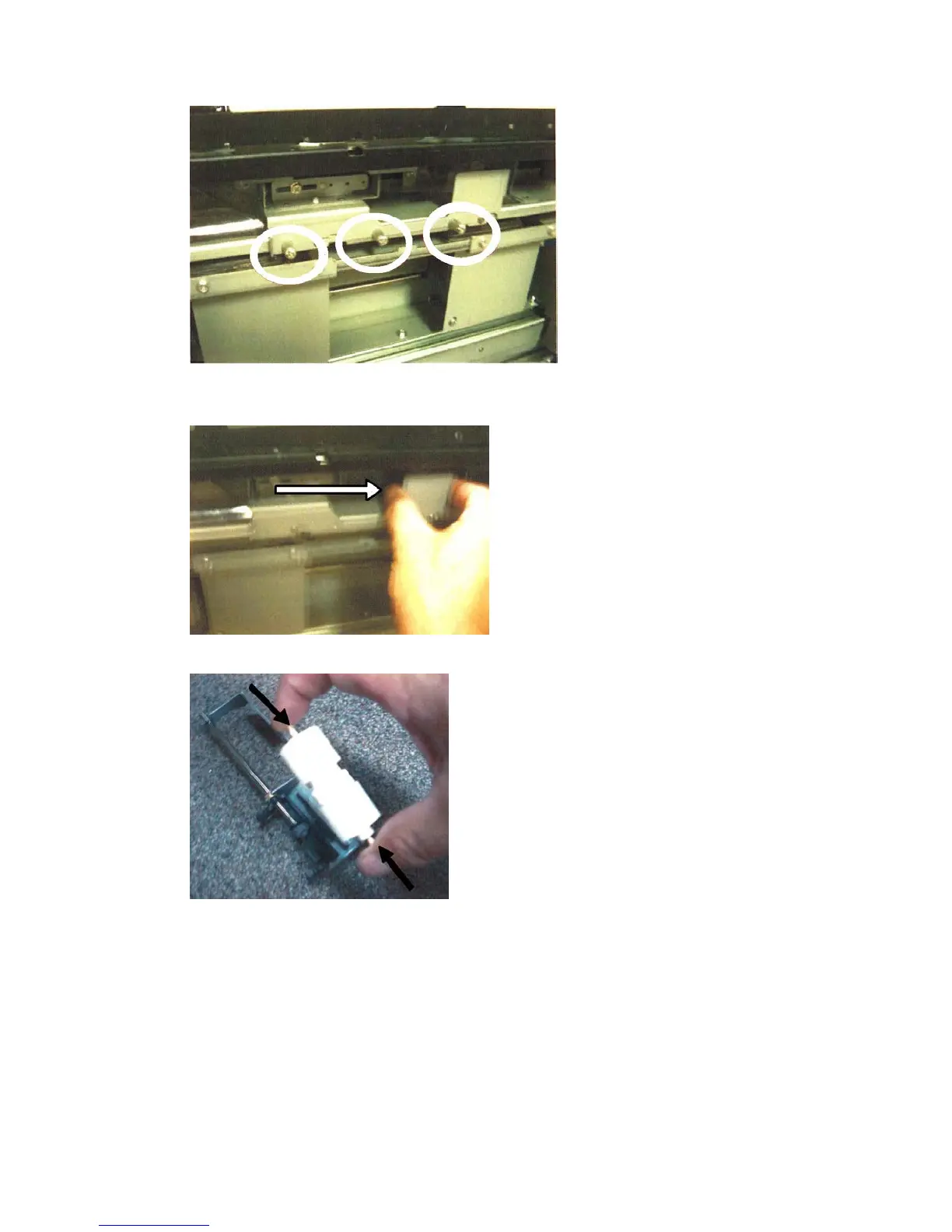

5. Slide the retard roll assembly to the right and pull it out of the tray.
6. Replace the retard roll by pressing the metal shafts.
7. Reinstall the assembly into the tray using the pin as a guideline, and ensure the device
is connected correctly.
Xerox
®
Color C75 Press13-10
User Guide
Oversized High Capacity Feeder (OHCF), 1 or 2 trays (Trays 6/7)
