Troubleshooting 364
îš„ Identifying the Location of Paper Jams
IMPORTANT:
• Do not attempt to clear any jams using tools or instruments. This may permanently damage the printer.

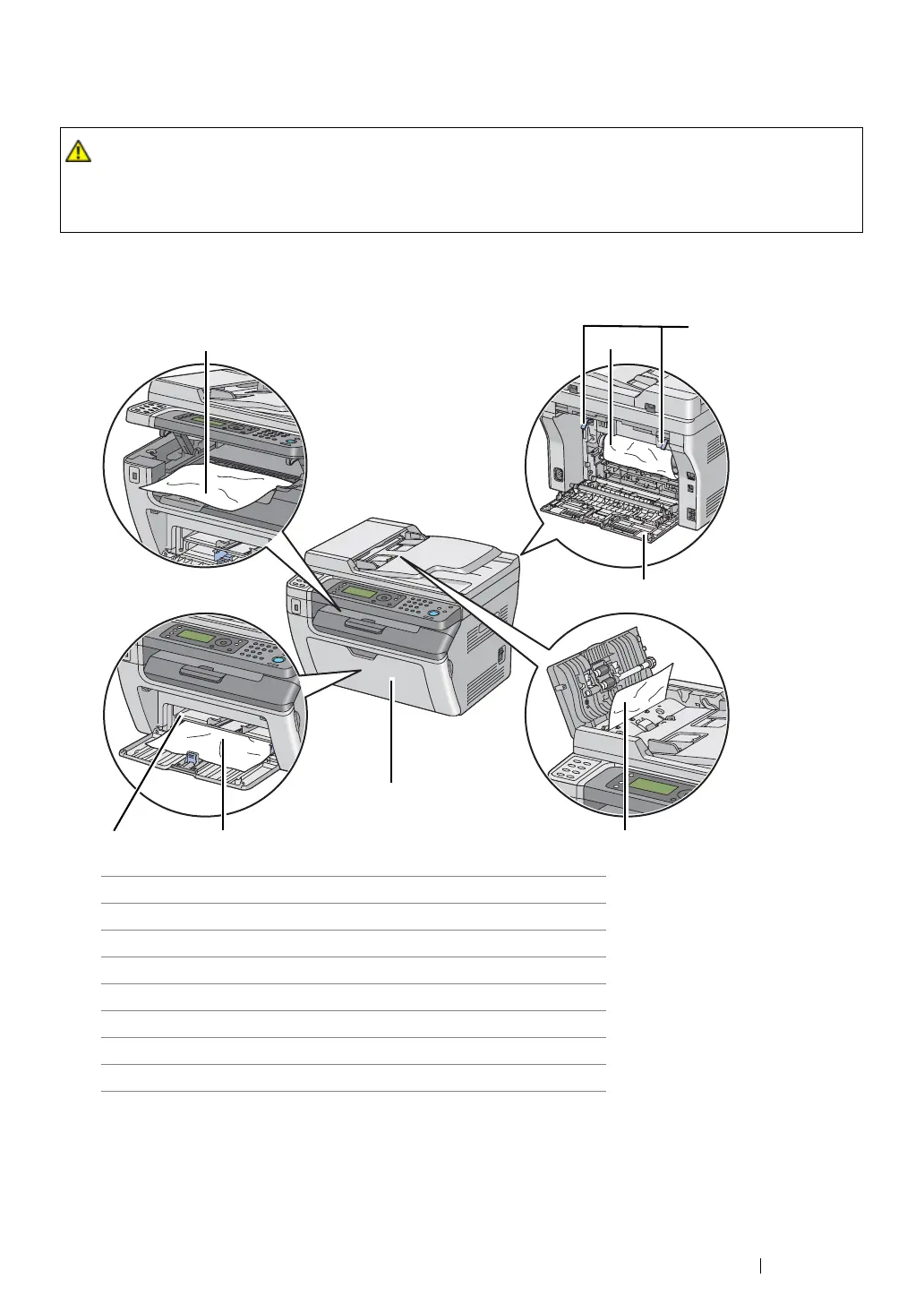

The following illustration shows where paper jams may occur along the print media path.
CAUTION:
• Do not attempt to remove a paper jammed deeply inside the product, particularly a paper wrapped
around a Fusing Unit or a heat roller. Otherwise, it may cause injuries or burns. Switch off the
product promptly and contact your local Fuji Xerox representative.
1 Center Output Tray
2Transfer Drum
3 Levers
4 Rear Cover
5 ADF Cover (DocuPrint M205 f/M205 fw only)
6 Front Cover
7 Multipurpose feeder (MPF)
8 Priority Sheet Inserter (PSI)
1
3
4
6
7
8
2
5
