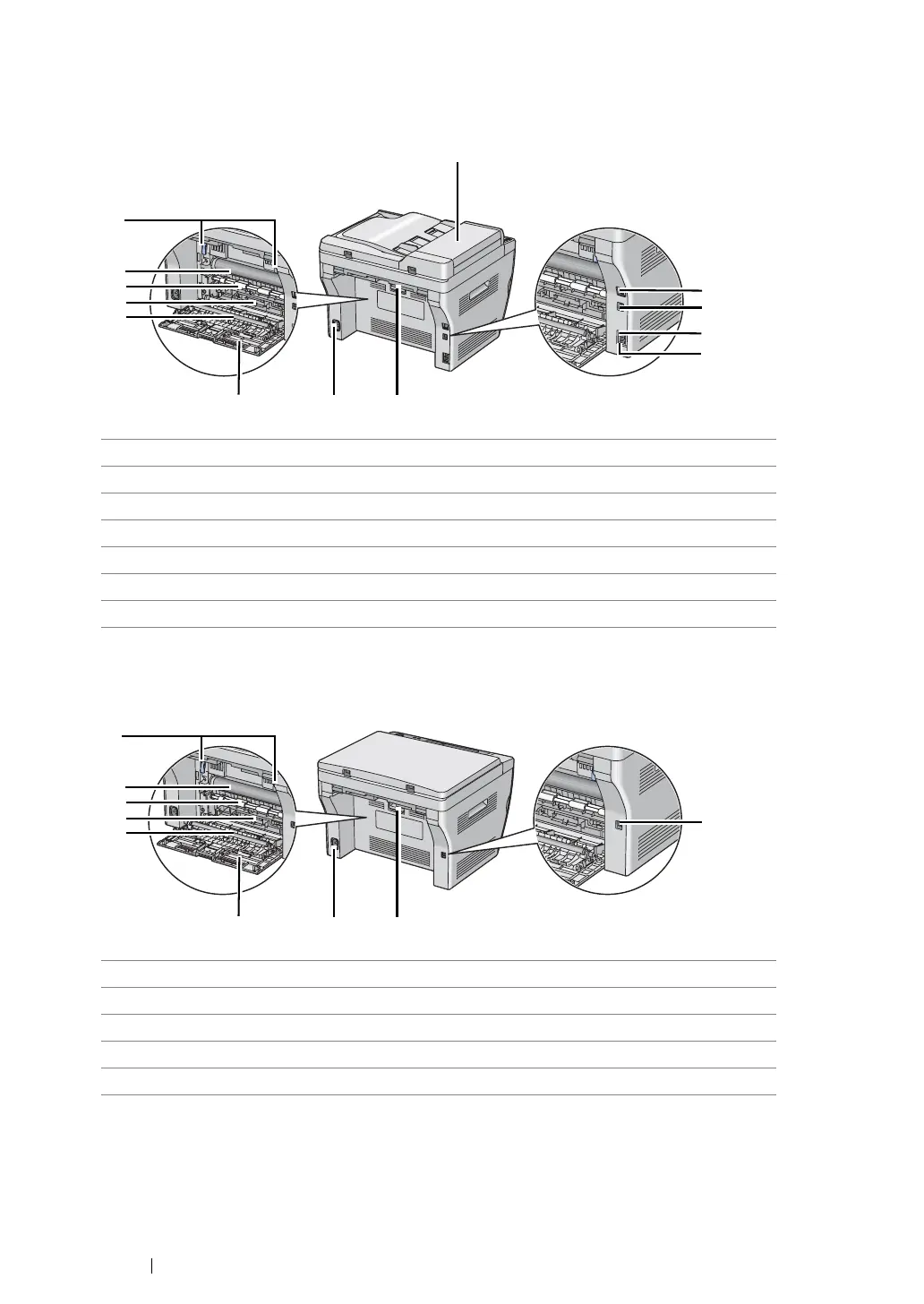

îš„ Rear View
DocuPrint M205 f/M205 fw
DocuPrint M205 b
1 ADF Cover 2 Ethernet Port
3 USB Port 4 Wall Jack Connector
5 Phone Connector 6 Rear Cover Handle
7 Power Connector 8 Rear Cover
9 Transfer Roller 10 Paper Chute
11 Paper Feed Roller 12 Transfer Drum
13 Levers
1 USB Port 2 Rear Cover Handle
3 Power Connector 4 Rear Cover
5 Transfer Roller 6 Paper Chute
7 Paper Feed Roller 8 Transfer Drum
9 Levers
12
11
10
9
8
7
3
6
1
2
4
5
13
9
8
7
6
5
4
3
1
2
