Repairs and Adjustments
Phaser 3435 5/08 4-7

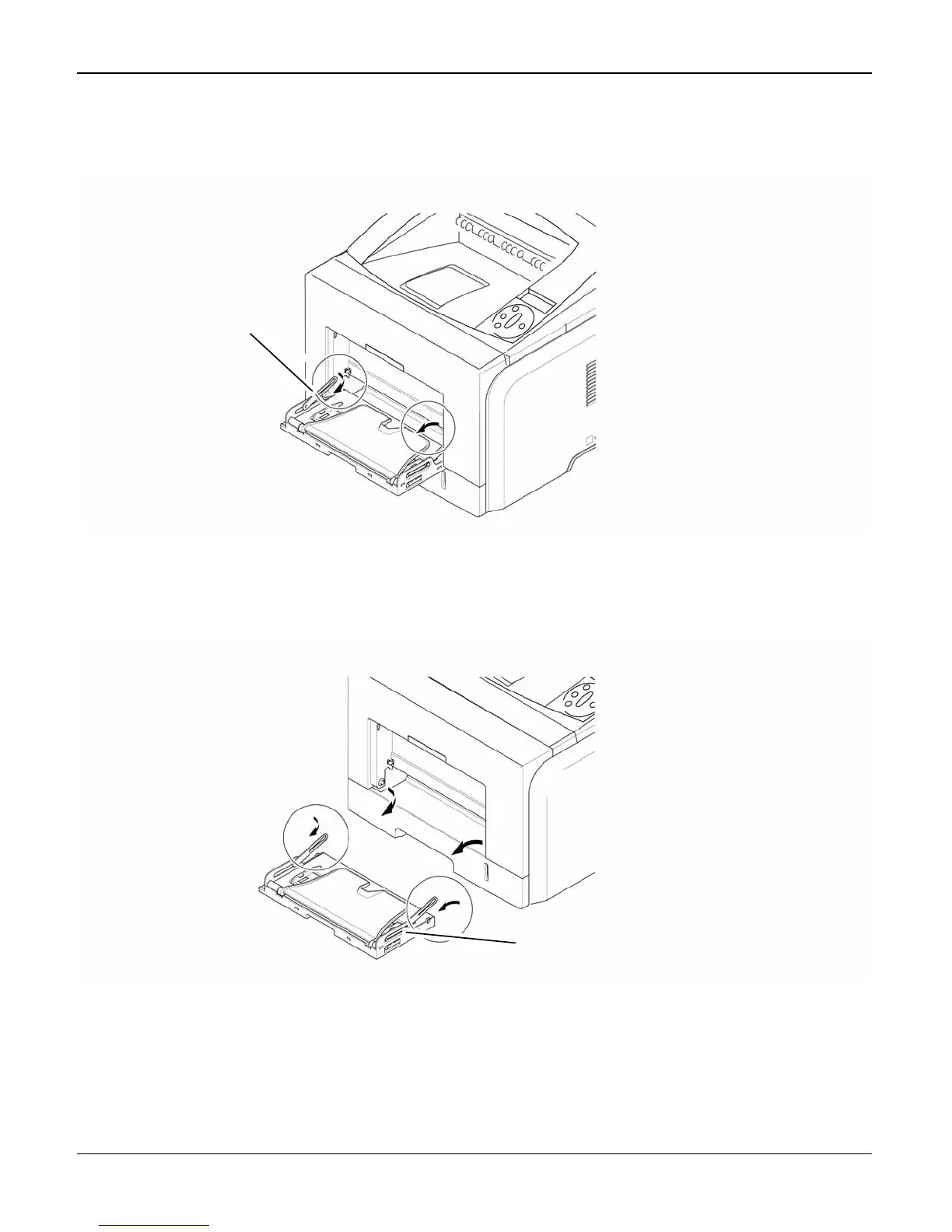

2. Pull the Tray Links from the both side of the Front Cover with a light pressure to the direction
of arrow.
Figure 2
3. Apply light pressure to the both side of the MP Tray Assembly and pull it in the direction of
arrow, as shown below.
Figure 3
Tray link
MP tray assembly
