Xerox PHASER 3435 - REP 12 Connection PCB

Repairs and Adjustments
4-34 5/08 Phaser 3435
REP 12 Connection PCB
Parts List on: PL 8
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer supply
while performing tasks that do not need electricity. Electricity can cause death or injury. Moving
parts can cause injury.
1. Before removing the Connection PCB, remove the:
- Side Cover Right, REP 7.
2. Unplug the all connectors.

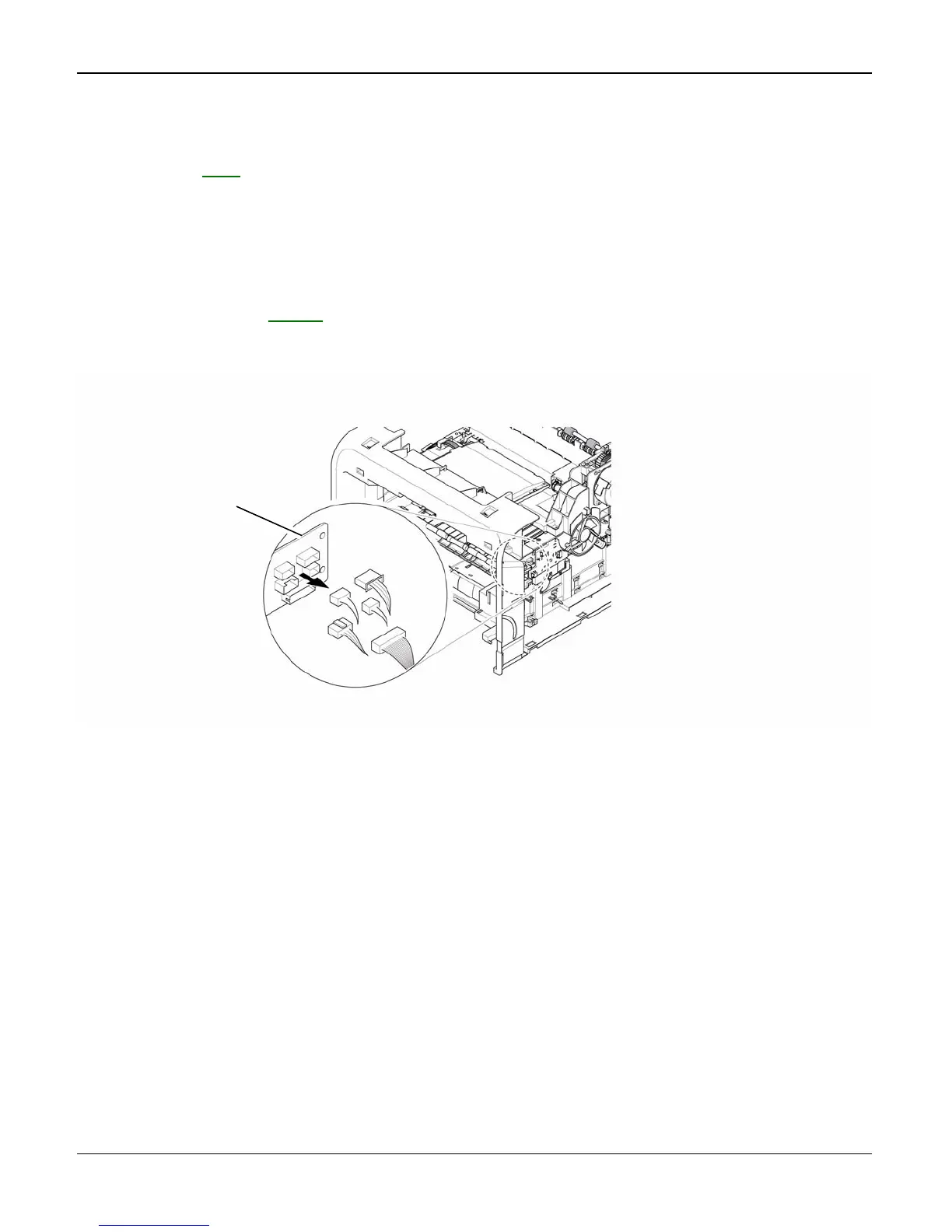

Figure 1
Connection PCB
