Xerox PHASER 3435 - REP 10 Duplex Drive Assembly

Repairs and Adjustments
4-30 5/08 Phaser 3435
REP 10 Duplex Drive Assembly
Parts List on: PL 1
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer supply
while performing tasks that do not need electricity. Electricity can cause death or injury. Moving
parts can cause injury.
1. Before removing the Duplex Drive Assembly, remove the:
- Side Cover Right, REP 7.
2. Unplug the connector from the Connection PCB and remove the three screws securing the
Duplex Drive Unit and remove it.

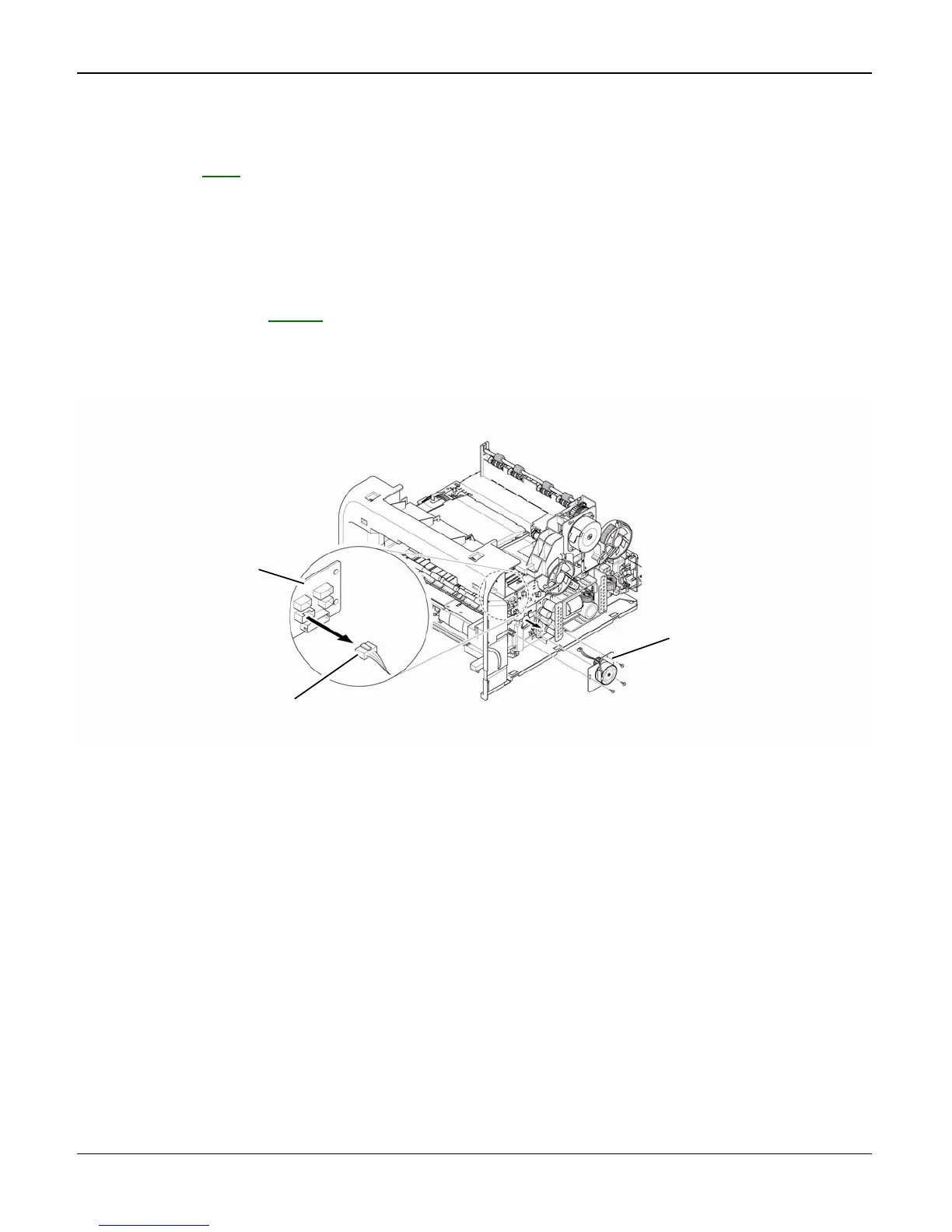

Figure 1
Connection PCB
Duplex motor
Duplex drive assembly
