Repairs and Adjustments
4-36 5/08 Phaser 3435
REP 13 Fuser Drive Assembly
Parts List on: PL 13
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer supply
while performing tasks that do not need electricity. Electricity can cause death or injury. Moving
parts can cause injury.
1. Before removing the Fuser Drive Assembly, remove the:
- Side Cover Right, REP 7.
2. Unplug the connector from the Connection PCB.

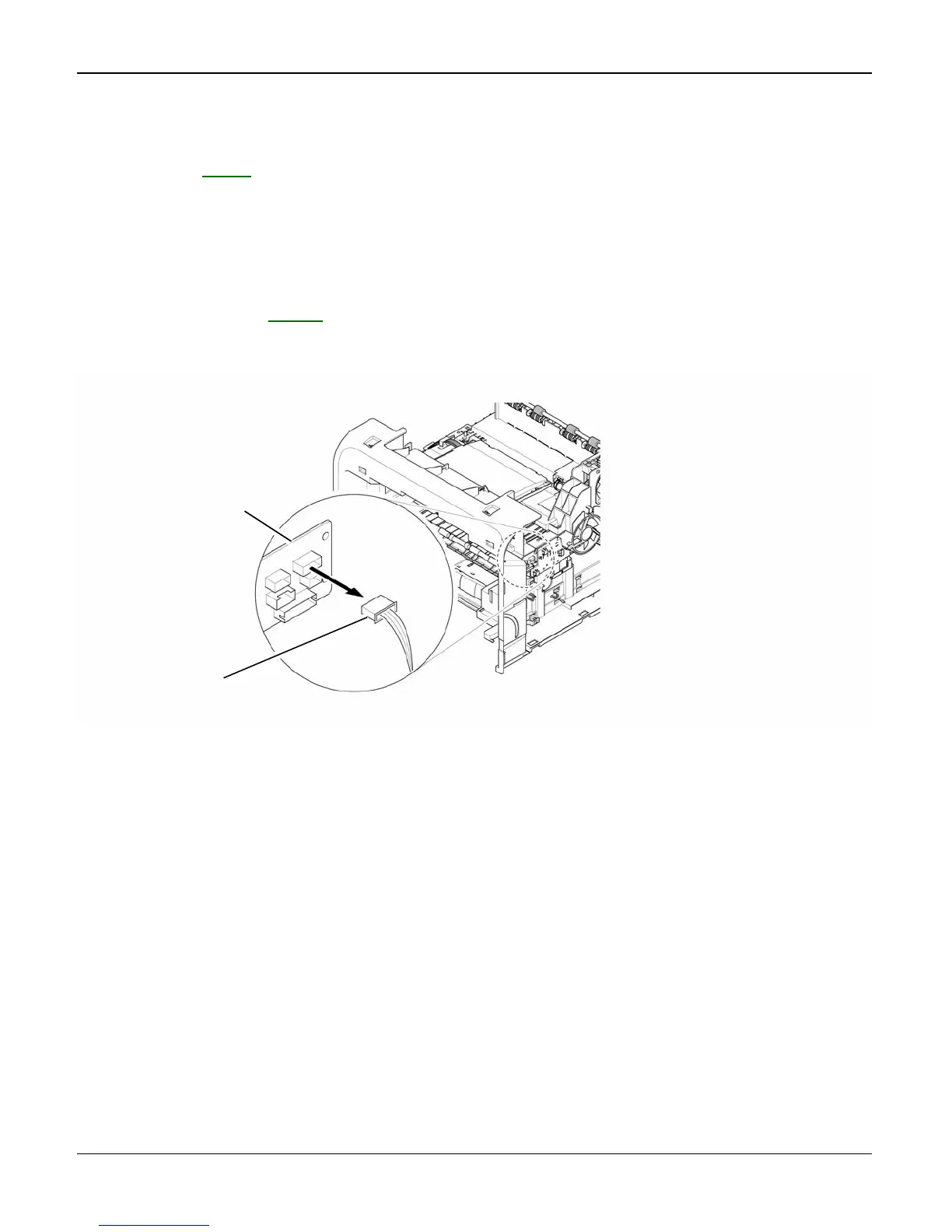

Figure 1
Connection PCB
Fuser drive
To Next Page
