Repairs and Adjustments
Phaser 3435 5/08 4-47
REP 19 MPF Housing
Parts List on: PL 9
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer supply
while performing tasks that do not need electricity. Electricity can cause death or injury. Moving
parts can cause injury.
1. Before removing the MPF Housing, remove the:
-Cover Mid Front, REP 18.
2. Remove the four screws securing the MPF Housing and remove it.

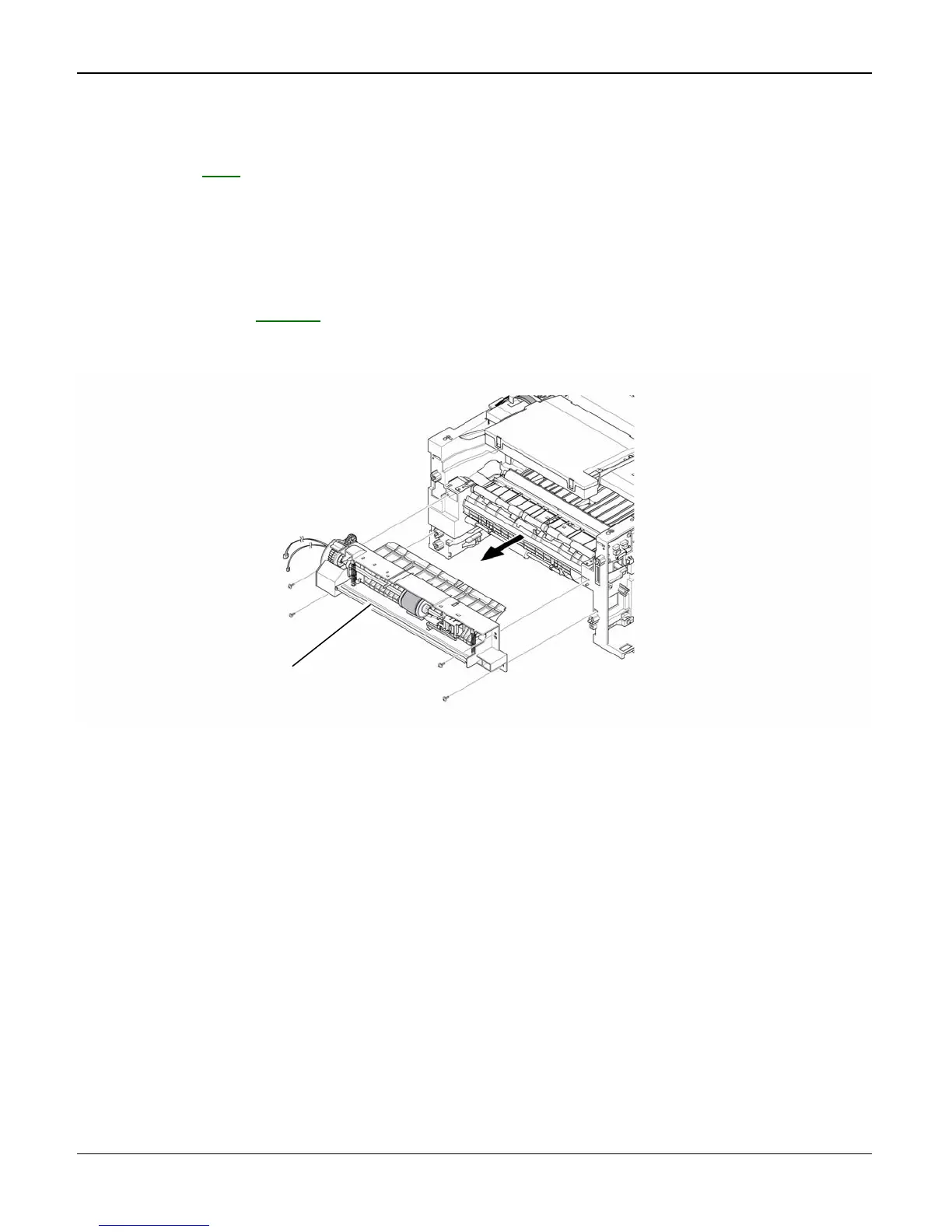

Figure 1
MFP housing
