Repairs and Adjustments
4-38 5/08 Phaser 3435
REP 14 Fans
Parts List on: PL 1
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer supply
while performing tasks that do not need electricity. Electricity can cause death or injury. Moving
parts can cause injury.
1. Before removing the Fan, remove the:
- Side Cover Right, REP 7.
2. Unplug the two connectors from the Connection PCB, as shown below.

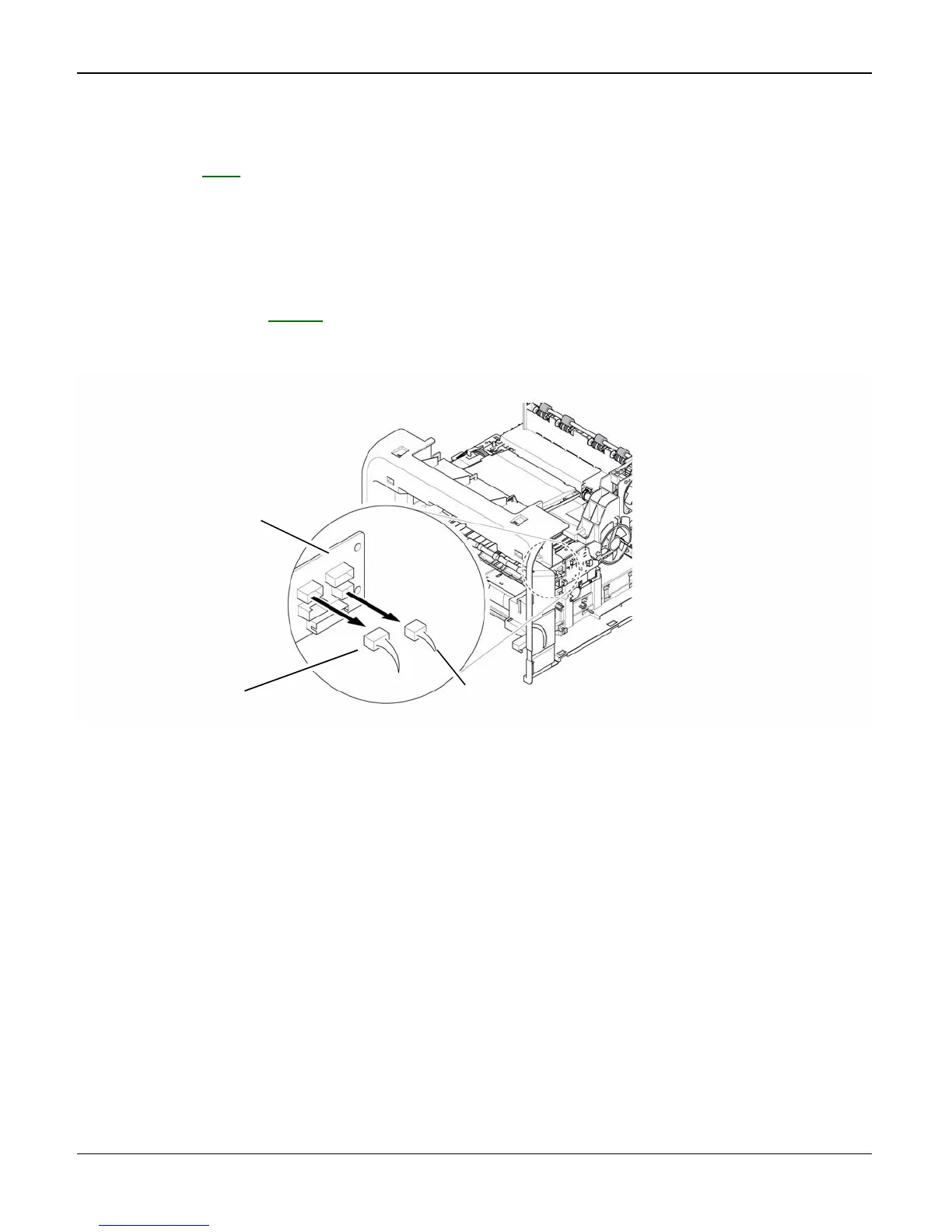

Figure 1
Connection PCB
Main fan Duplex fan
To Next Page
