Repairs and Adjustments
Phaser 3435 5/08 4-17
REP 5 Top Cover
Parts List on: PL 2
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer supply
while performing tasks that do not need electricity. Electricity can cause death or injury. Moving
parts can cause injury.
1. Before removing the Top Cover, remove the:
- Rear Cover (Left, Right), REP 3.

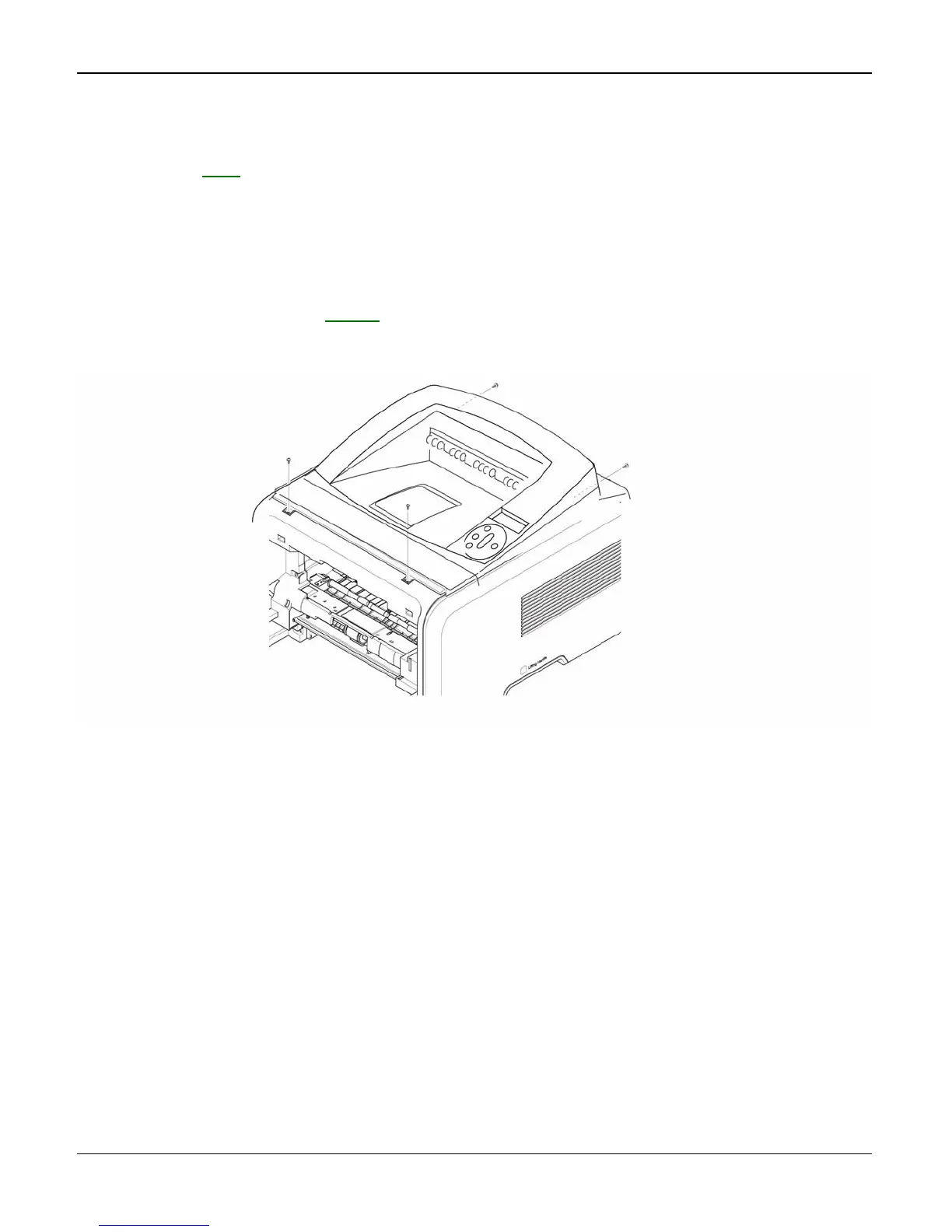

2. Remove the four screws securing the Top Cover, as shown below.
Figure 1
To Next Page
