Repairs and Adjustments
Phaser 3435 5/08 4-57
REP 24 Terminal
Parts List on: PL 7
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer supply
while performing tasks that do not need electricity. Electricity can cause death or injury. Moving
parts can cause injury.
1. Before removing the CRUM 2 PBA, remove the:
-Top Cover, REP 5.
-Side Cover, REP 7.
-LSU, REP 23.

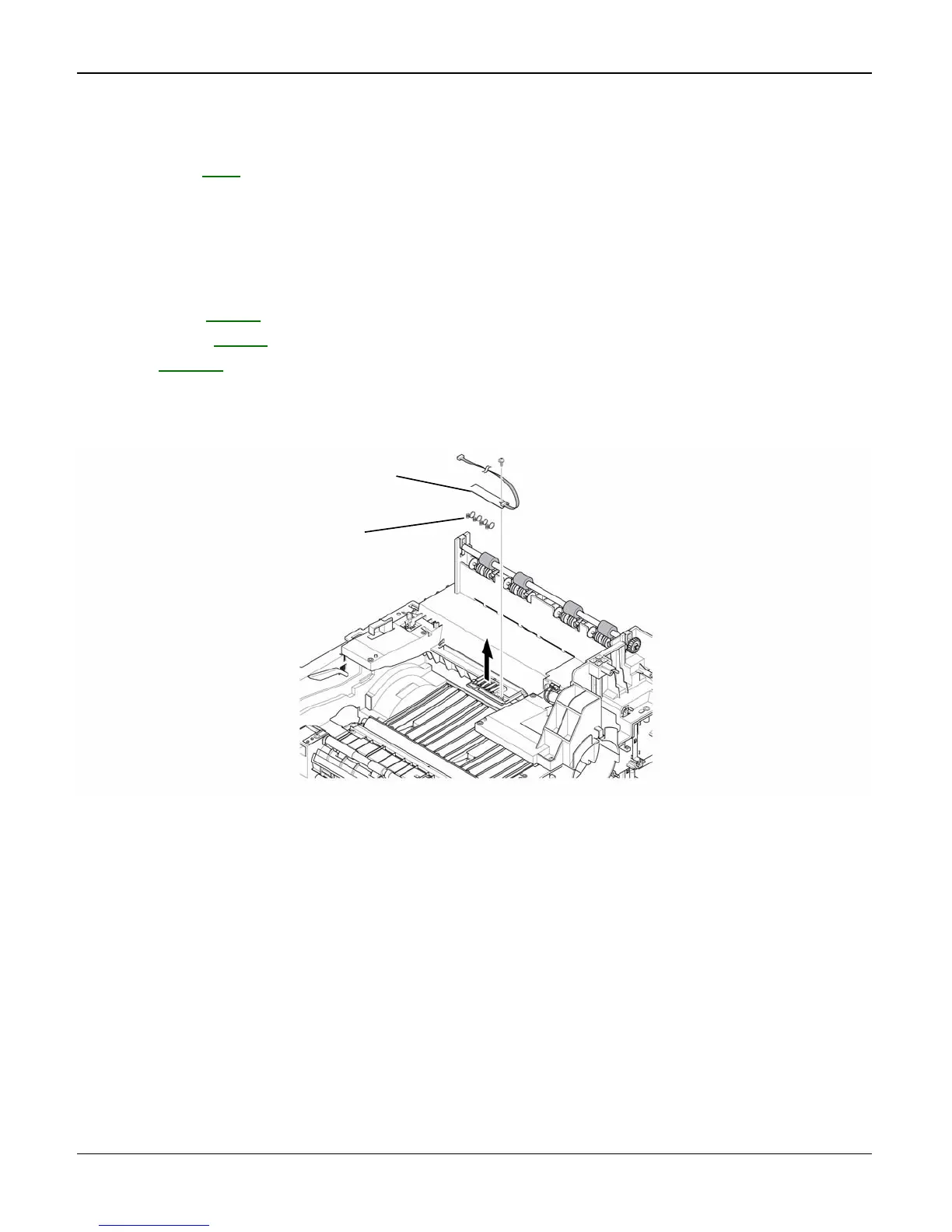

2. Remove the one screw securing the CRUM 2 PBA and remove it and then release the four
Terminals, as shown below.
Figure 1
Note: Be aware of the Terminals to ensure they are not lost.
3-28
CRUM2 PBA
Terminal
To Next Page
