Repairs and Adjustments
Phaser 3435 5/08 4-11
REP 4 Fuser Assembly
Parts List on: PL 13 and PL 14
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer supply
while performing tasks that do not need electricity. Electricity can cause death or injury. Moving
parts can cause injury.
WARNING
Do not touch the fuser while it is hot.
1. Before removing the Fuser Assembly, open the face up cover and open the guide output
fuser. Rear Cover, REP 3
.
2. Remove the four screws securing the Fuser Assembly and then pull the Fuser Assembly.

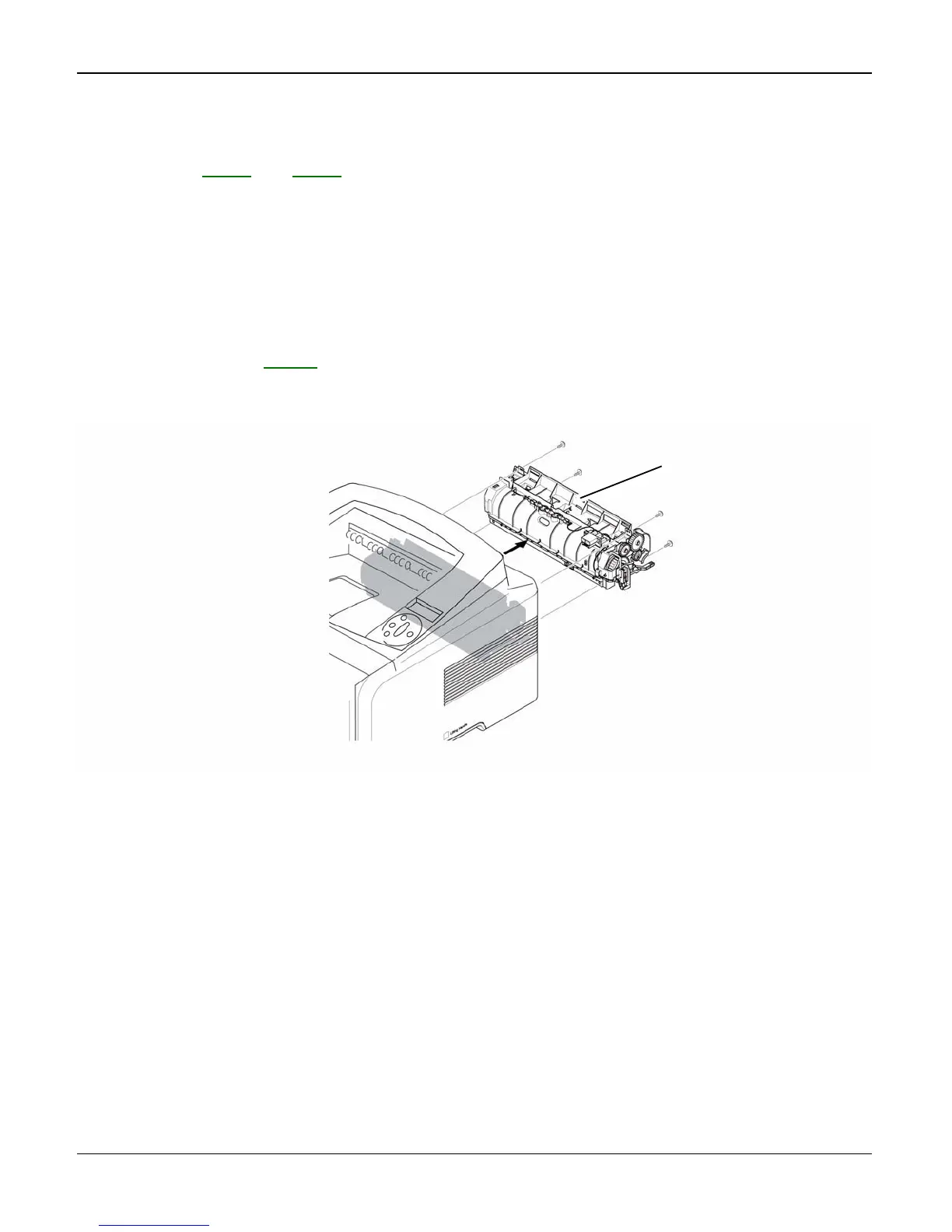

Figure 1
Fuser assembly
