Xerox PHASER 3435 - REP 17 HVPS Housing

Repairs and Adjustments
4-44 5/08 Phaser 3435
REP 17 HVPS Housing
Parts List on: PL 6
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer supply
while performing tasks that do not need electricity. Electricity can cause death or injury. Moving
parts can cause injury.
1. Before removing the HVPS Housing, remove the:
-Duplex Drive Assembly, REP 10.
-Unplug the HVPS Connector, REP 11.
-Pick Up Roller Assembly, REP 15.
-Duplex Guide Housing, REP 16
.

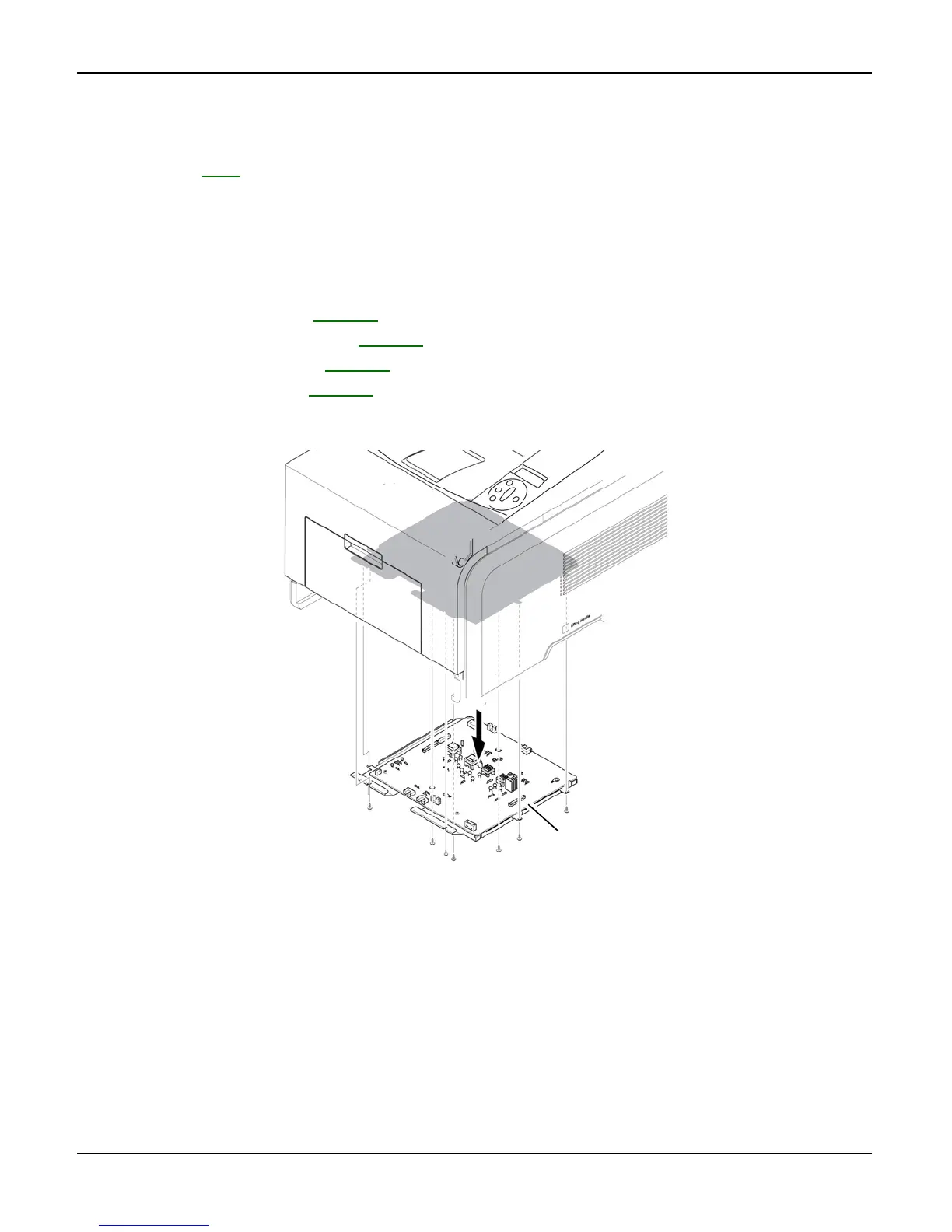

2. Remove the eight screws securing the HVPS Housing, as shown below.
Figure 1
HVPS housing
