Repairs and Adjustments
Phaser 3435 5/08 4-45

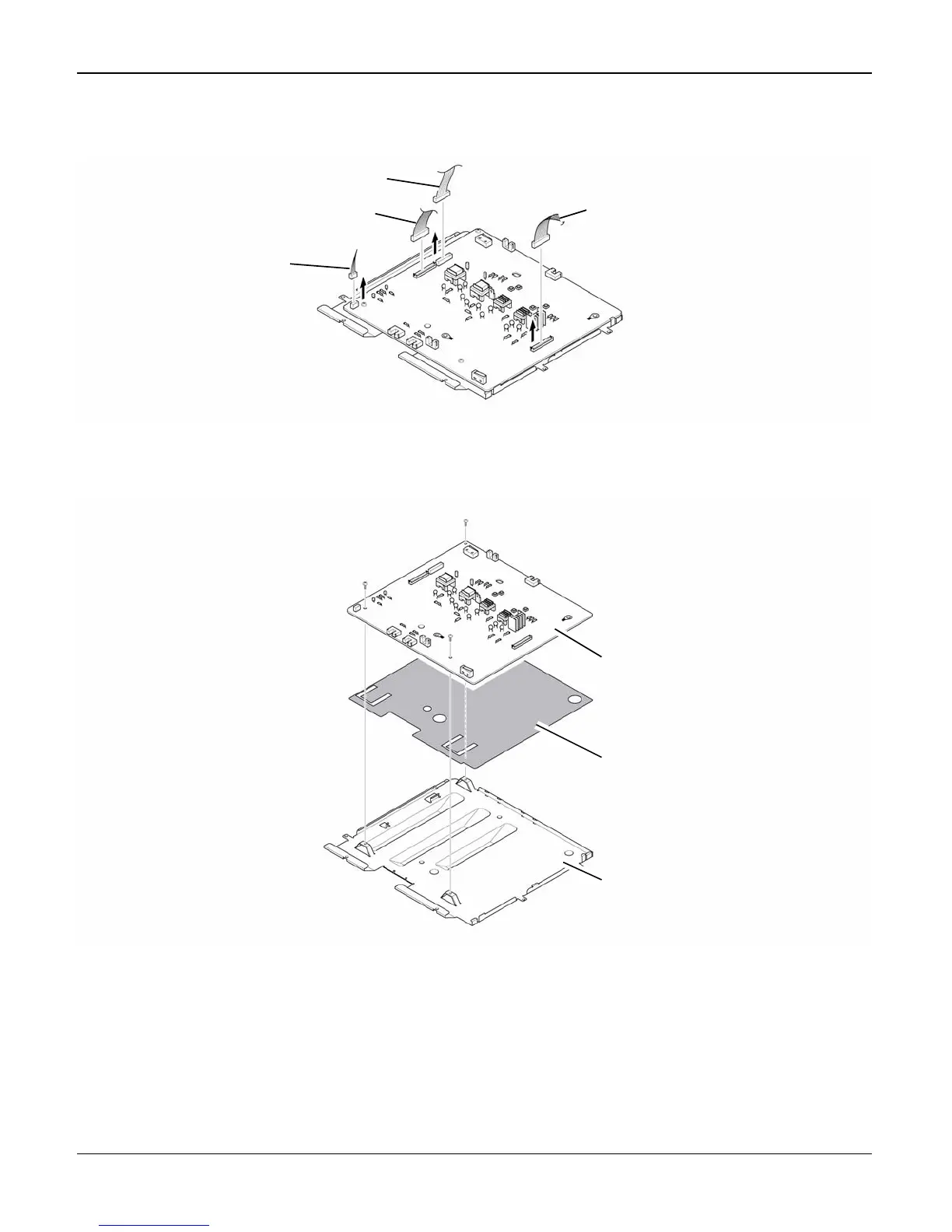

3. Unplug the connector for connector PBA and SMPS first. Unplug the other Connections.
Figure 2
4. If necessary, remove the three screws securing the HVPS and remove it.
Figure 3
Duplex motor
Duplex guide housing
Engine
Connection PBA & SMPS
HVPS
Insulator sheet
Shield
