Repairs and Adjustments
4-28 5/08 Phaser 3435
REP 9 Drive Assembly
Parts List on: PL 10
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer supply
while performing tasks that do not need electricity. Electricity can cause death or injury. Moving
parts can cause injury.
1. Before removing the Drive Assembly, remove the:
- Side Cover Left, REP 7.
2. Remove the six screws securing the Drive Assembly and remove it.

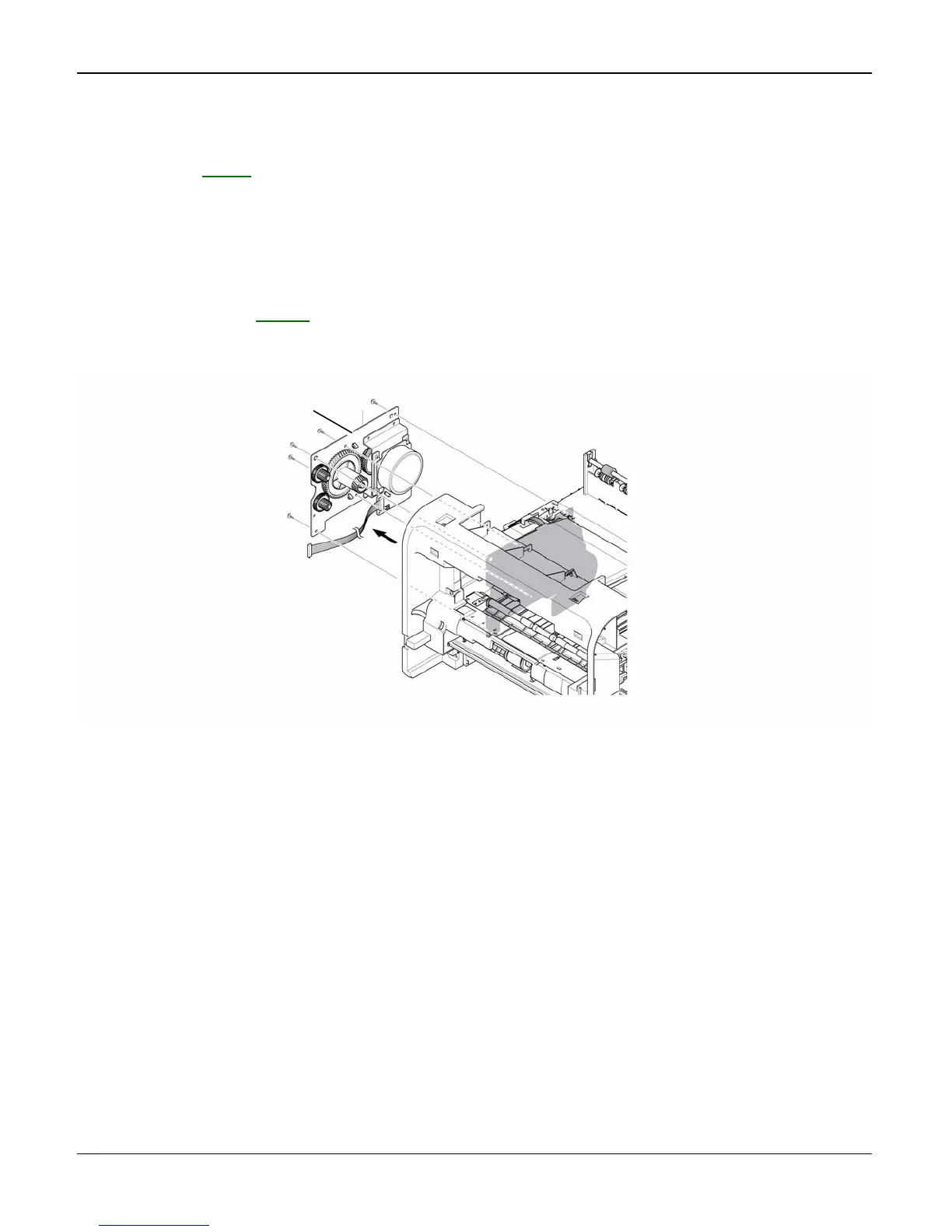

Figure 1
Note: The six screws have numbers stamped into the Drive Assembly base plate. When refitting
the Drive Assembly tighten the screws the order they are numbered. Only screws numbered 1 to
5 are fitted at this stage. Screw 6 is fitted when the Shield Controller Assembly is refitted.
Drive assembly
