Repairs and Adjustments
Phaser 3435 5/08 4-53
REP 21 Pick Up Gear Assembly & Solenoids
Parts List on: PL 6
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer supply
while performing tasks that do not need electricity. Electricity can cause death or injury. Moving
parts can cause injury.
1. Before removing the Pick Up Gear Assembly & Solenoids, remove the:
-Duplex Guide Housing, REP 16.
-Feed Bracket Unit REP 20.
2. Release the Pick Up Gear Assembly and Pick Up Gear Shaft, as shown below.

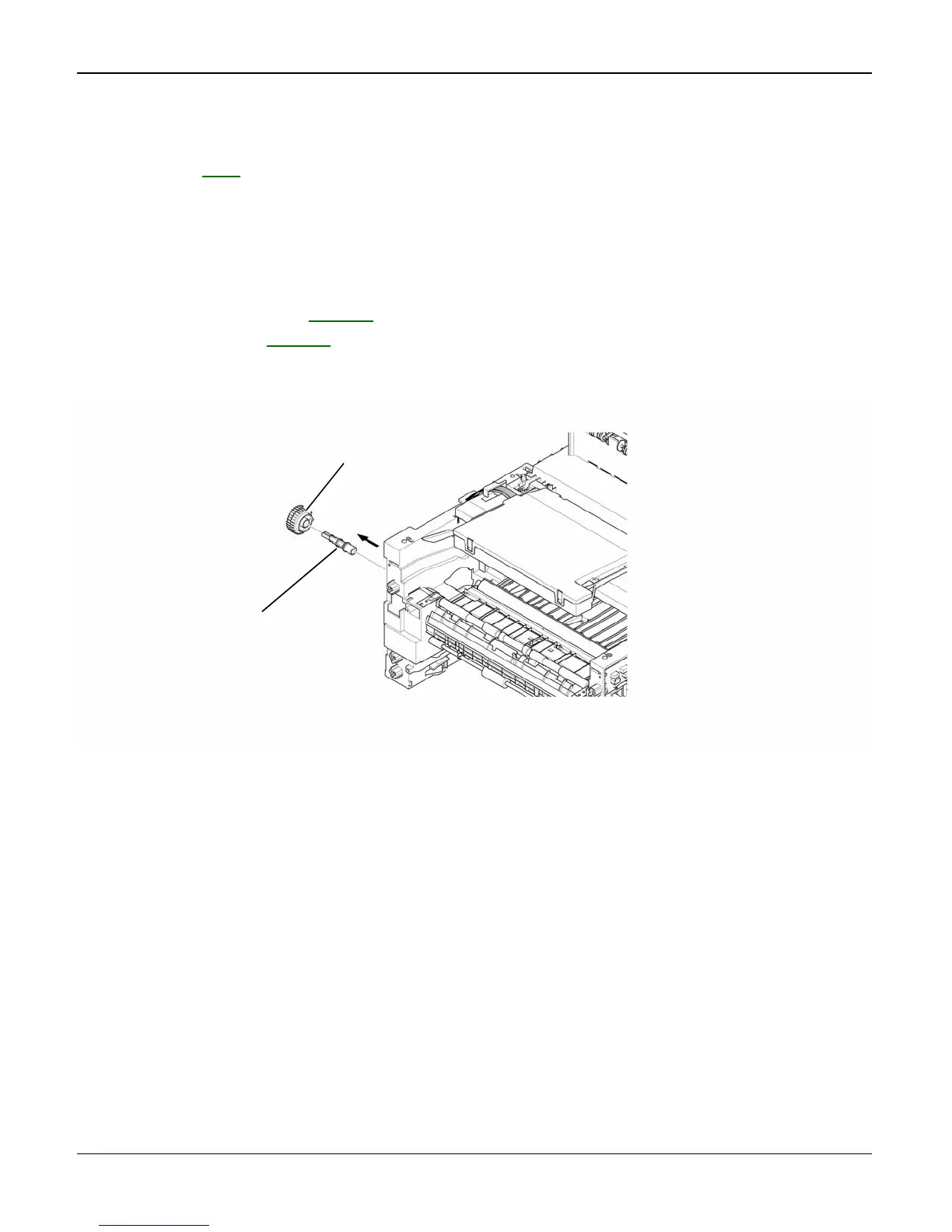

Figure 1
Pickup gear assembly
Pick up gear shaft
To Next Page
