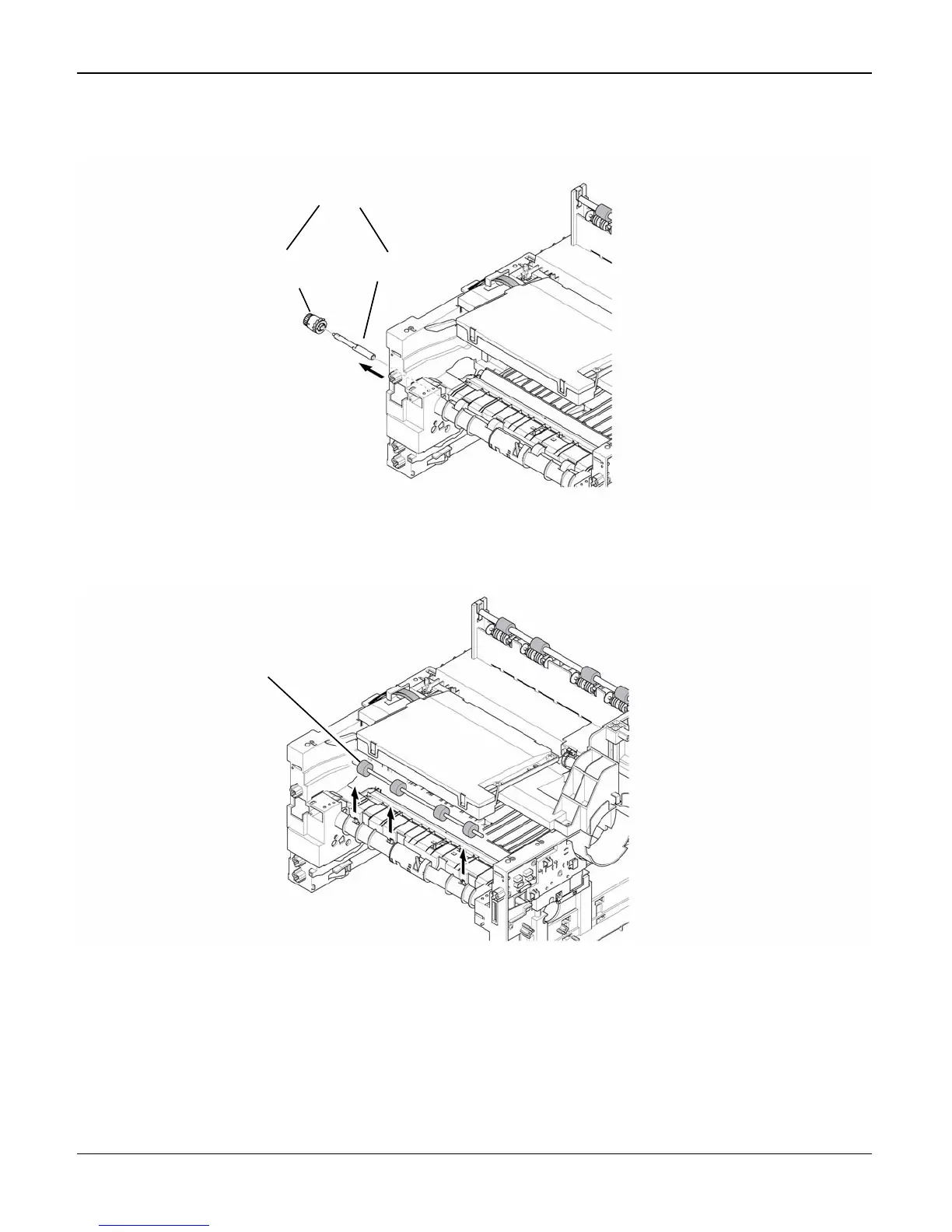

7. Remove the Clutch Unit, as shown below.
Figure 6
8. Pull up the Feed 1 Roller from the Bushing, as shown below.
Figure 7
Clutch unit
Feed shaft
Feed 1 gear
assembly
Feed 1 roller
