Xerox PHASER 3435 - REP 16 Duplex Guide Housing (with Feed Roller)

Repairs and Adjustments
4-42 5/08 Phaser 3435
REP 16 Duplex Guide Housing (With Feed Roller)
Parts List on: PL 6
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer supply
while performing tasks that do not need electricity. Electricity can cause death or injury. Moving
parts can cause injury.
1. Before removing the Duplex Guide Housing, remove the:
- Pick Up Roller Assembly, REP 15.
2. Remove the two screws securing the Duplex Guide Housing.

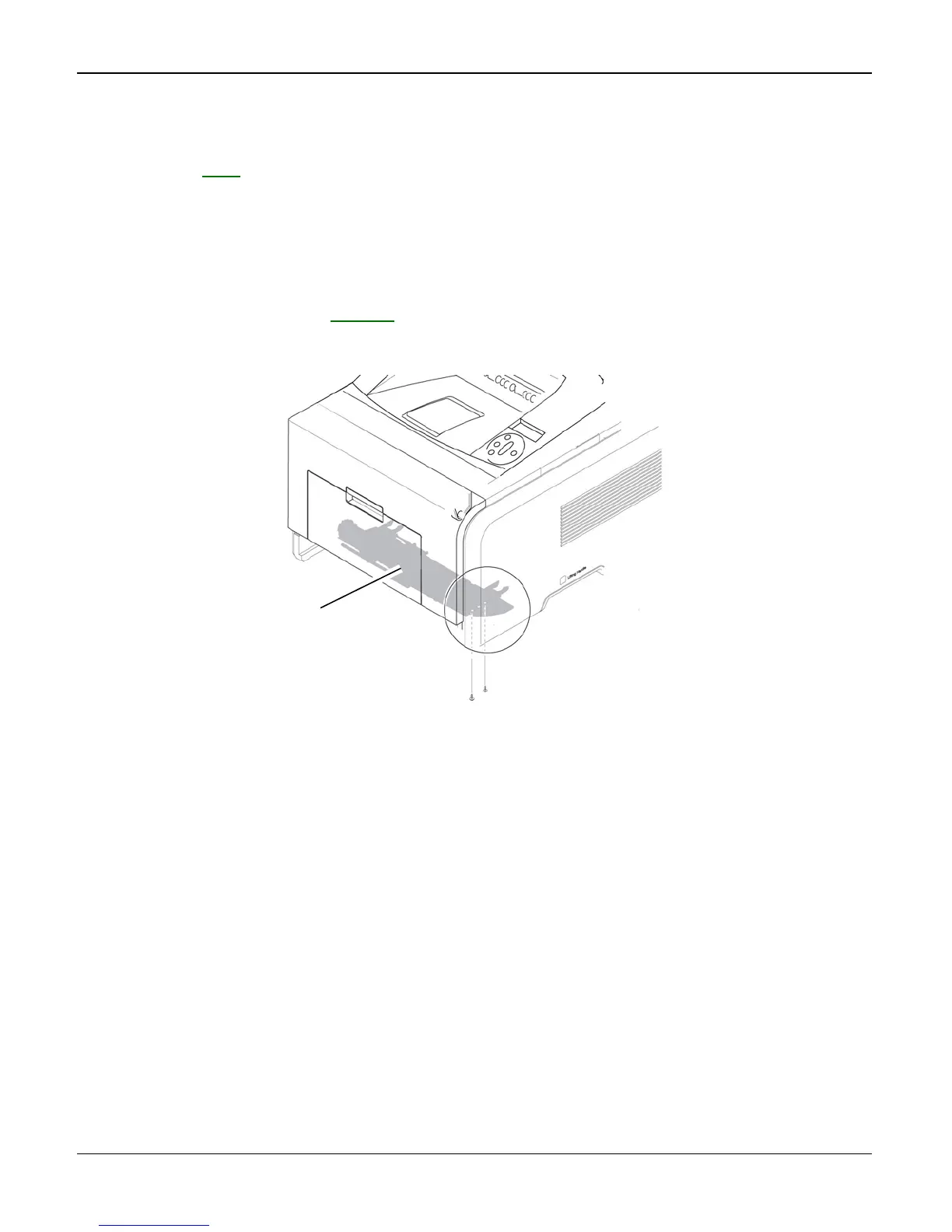

Figure 1
Duplex guide housing
