Repairs and Adjustments
Phaser 3435 5/08 4-43

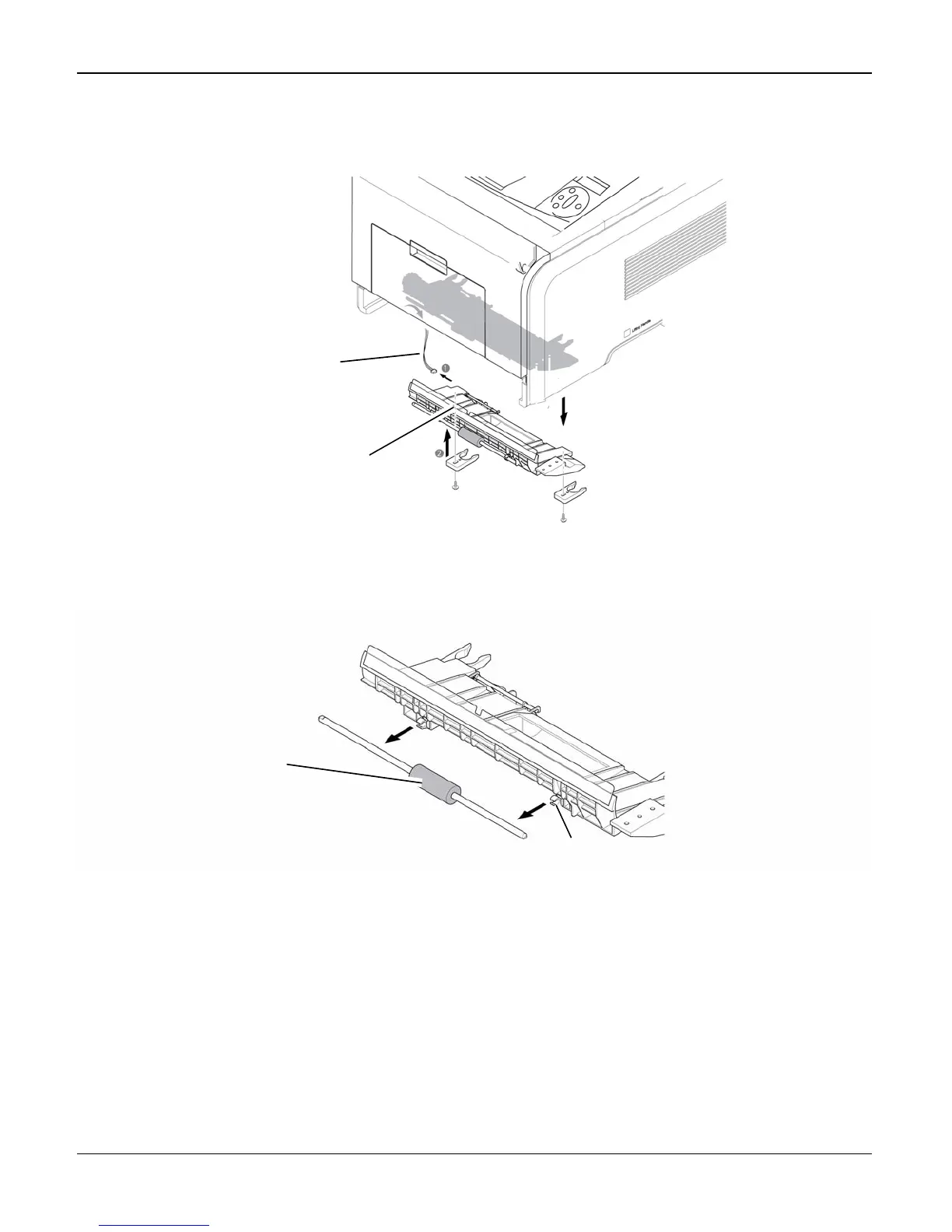

3. Unplug the one connector (Photo Interrupter) and remove the Duplex Guide Housing (with
Feed Roller), as shown below.
Figure 2
4. Pull the Feed Roller from the Bushing.
Figure 3
Photo interrupter connector
Duplex guide housing
Feed roller
Bushing
