Repairs and Adjustments
4-40 5/08 Phaser 3435
REP 15 Pick-up Roller Assembly
Parts List on: PL 6
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer supply
while performing tasks that do not need electricity. Electricity can cause death or injury. Moving
parts can cause injury.
1. Take out the Cassette.
2. To remove the Pick Up Roller Assembly, first lift the notch attached to the Pick Up Roller
Assembly from the Shaft, then slide the Pick Up Roller Assembly from left to right and it will
be released completely, as shown below.

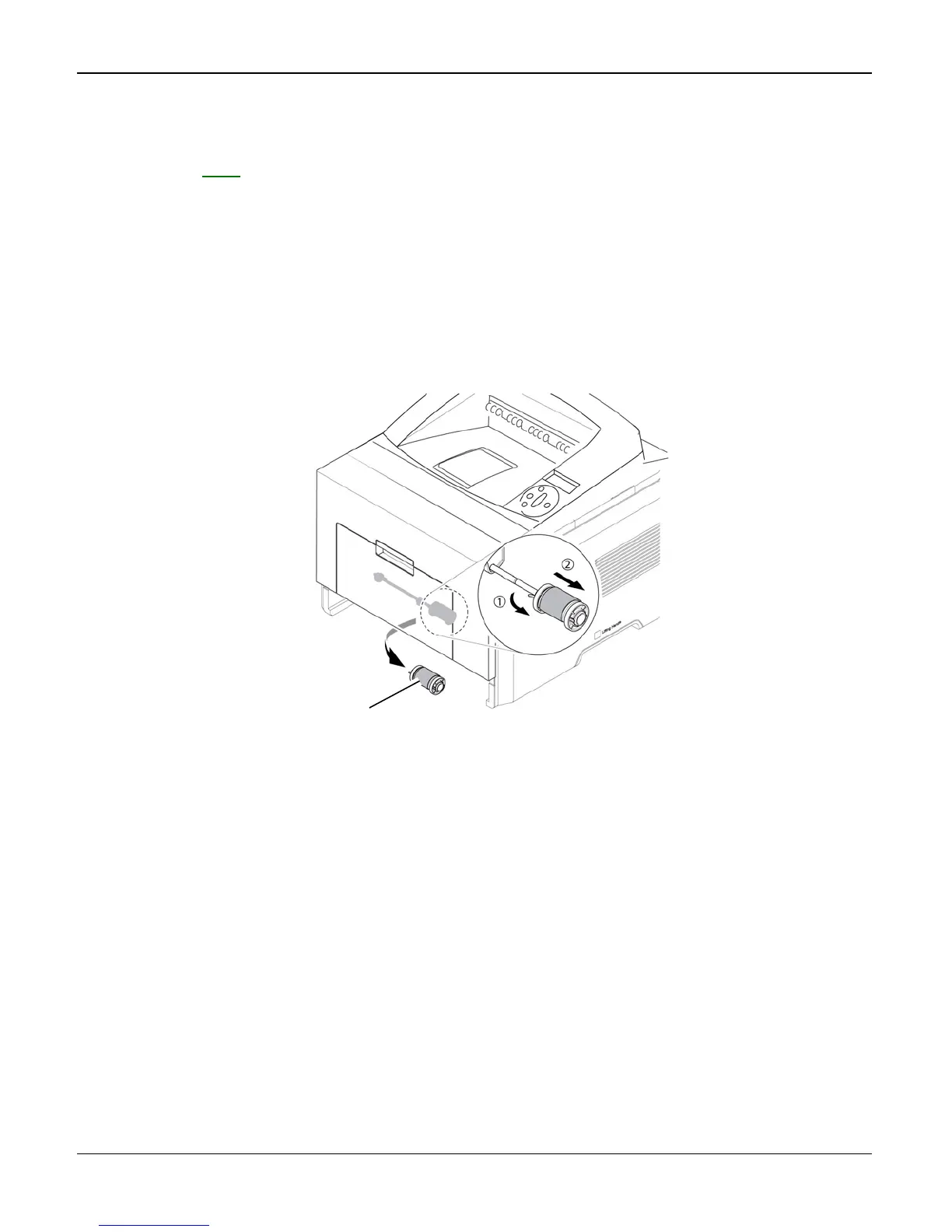

Figure 1
3. To remove the Shaft, first release the locker and slide the Shaft from left to right, then lift the
notch attached to the Cam so that it's released from the Shaft. Then release the Bush from
the Shaft and remove the Shaft from the Duplex Guide Housing, as shown in Figure 2.
Pick up roller assembly
