Xerox PHASER 3435 - REP 18 Cover MID Front

Repairs and Adjustments
4-46 5/08 Phaser 3435
REP 18 Cover Mid Front
Parts List on: PL 2
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer supply
while performing tasks that do not need electricity. Electricity can cause death or injury. Moving
parts can cause injury.
1. Before removing the Cover Mid Front, remove the:
-Top Cover, REP 5.
-Side Cover, REP 7.
2. Remove the six screws securing the Cover Mid Front and release two hooks in the centre.
CAUTION
This cover is fragile take care when removing it

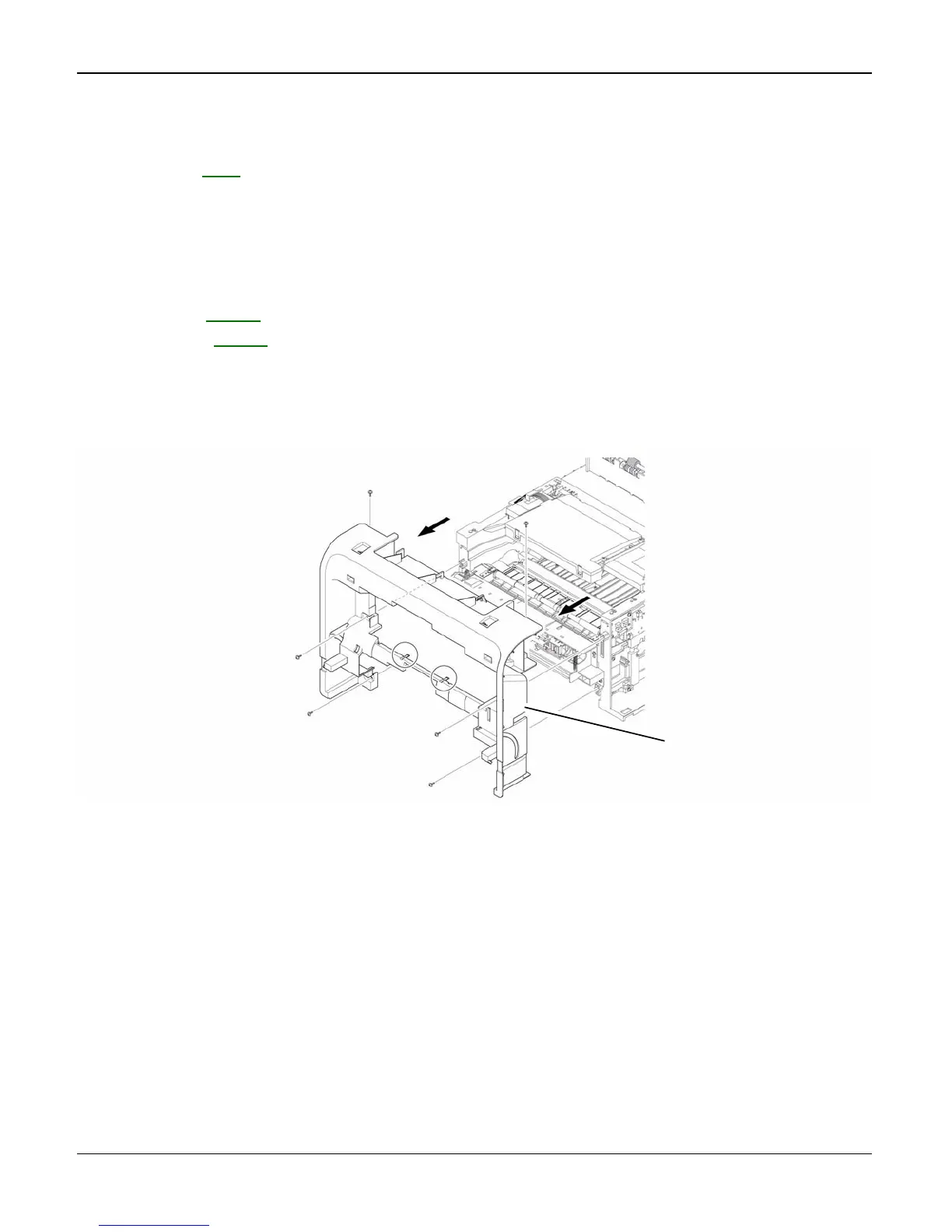

Figure 1
Cover mid front
