Xerox PHASER 3435 - REP 22 Exit Roller

Repairs and Adjustments
Phaser 3435 5/08 4-55
REP 22 Exit Roller
Parts List on: PL 7
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer supply
while performing tasks that do not need electricity. Electricity can cause death or injury. Moving
parts can cause injury.
1. Before removing the Exit Roller, you remove the:
-Top Cover, REP 5.
-Side Cover, REP 7.
-Fuser Drive Assembly, REP 13.
2. Remove the Exit Gear, and release the Bearing at one end then remove the Roller Exit F/
Down and Exit Roller Rack, as shown below.

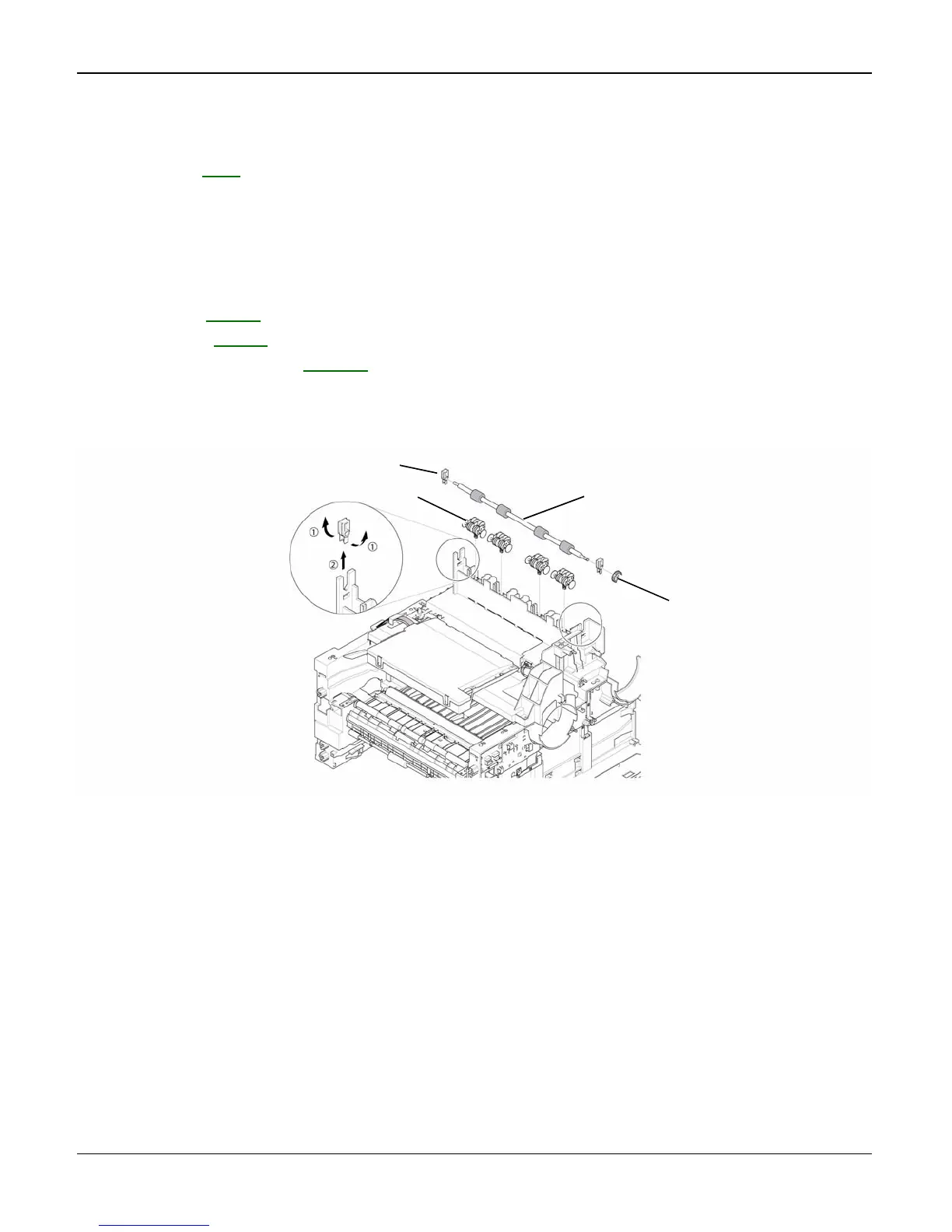

Figure 1
Exit gear
Roller exit F/down
Exit roller rack
Bearing
