Xerox PHASER 3435 - REP 6 OPE Unit

Repairs and Adjustments
Phaser 3435 5/08 4-19
REP 6 OPE Unit
Parts List on: PL 5
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer supply
while performing tasks that do not need electricity. Electricity can cause death or injury. Moving
parts can cause injury.
1. Remove the top cover, REP 5.
2. Remove the six screws securing the OPE PBA and LCD Panel to the Top Cover and remove
it, as shown below.

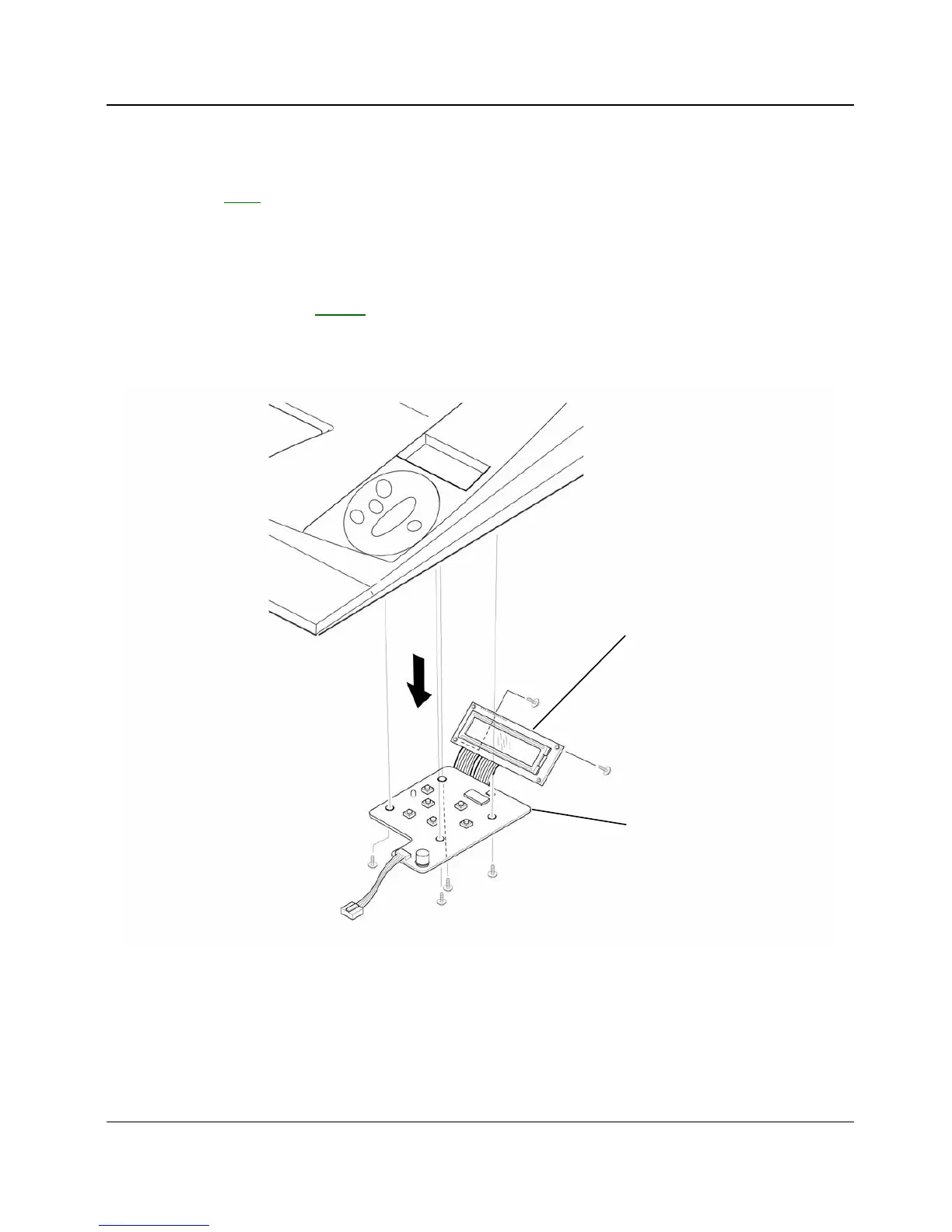

Figure 1
LCD panel
OPE PBA
