Repairs and Adjustments
Phaser 3435 5/08 4-21
REP 7 Side Cover (Left, Right)
Parts List on: PL 2
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer supply
while performing tasks that do not need electricity. Electricity can cause death or injury. Moving
parts can cause injury.
1. Before removing the Side Cover (Left, Right), remove the:
- Rear Cover, REP 3.
- Top Cover, REP 5.
2. Remove the one screw securing the Right Side Cover, as shown below.

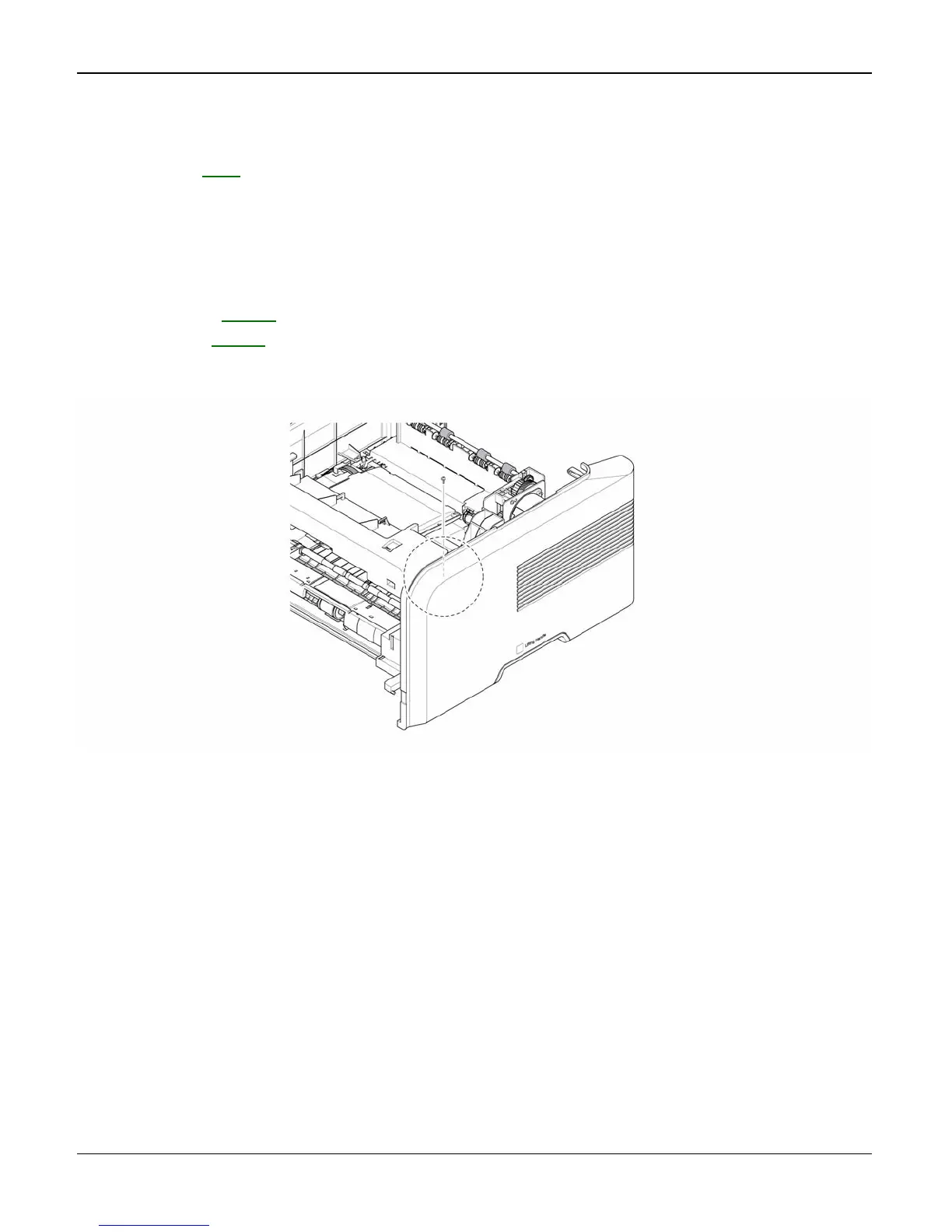

Figure 1
