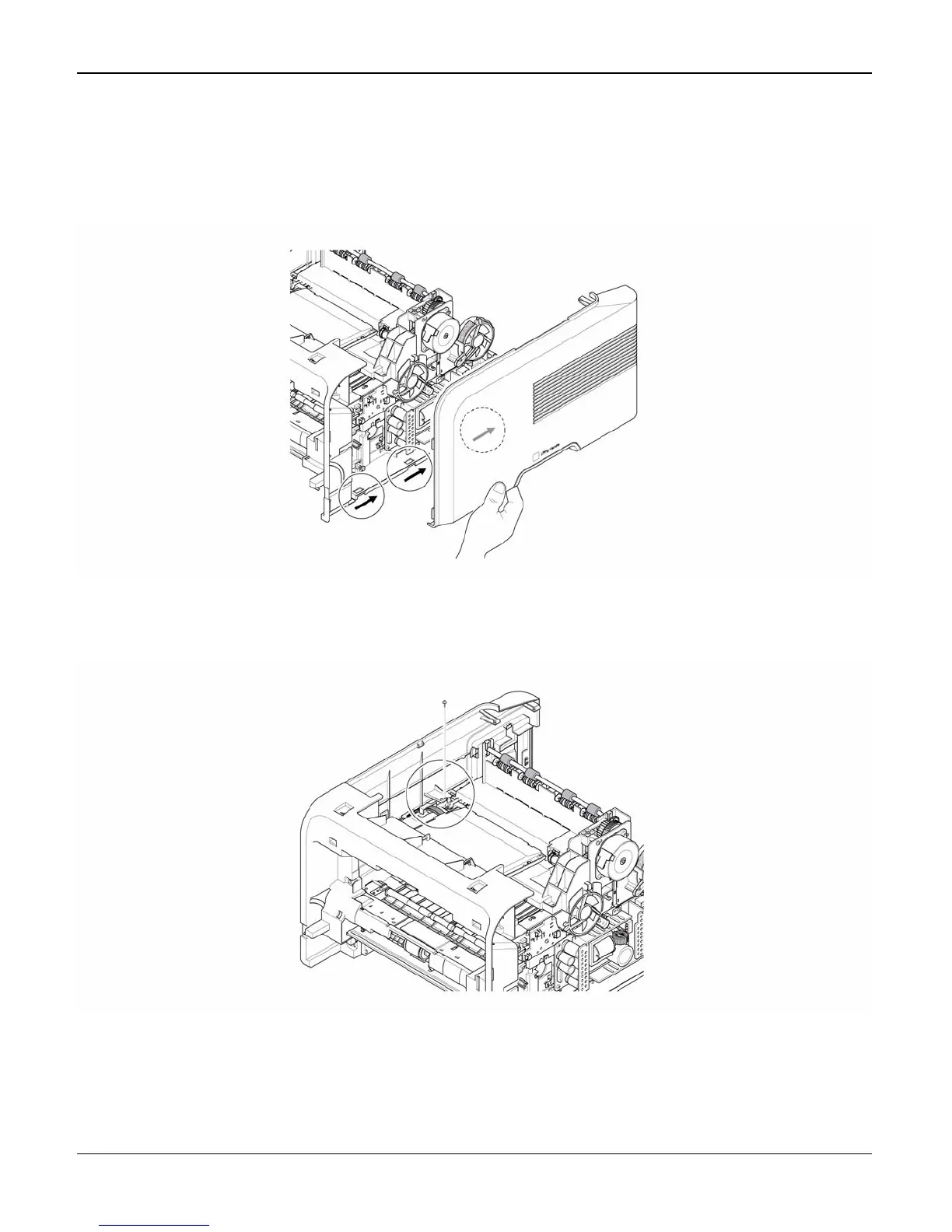

3. Apply light pressure to the bottom of the Right Side Cover and pull it to the right side in the
direction of arrows, as shown below.
CAUTION
Be careful not to damage the hooks when remove the Side Cover (Left, Right).
Figure 2
4. Remove the one screw securing the Left Side Cover, as shown below.
Figure 3
