Repairs and Adjustments
Phaser 3435 5/08 4-51

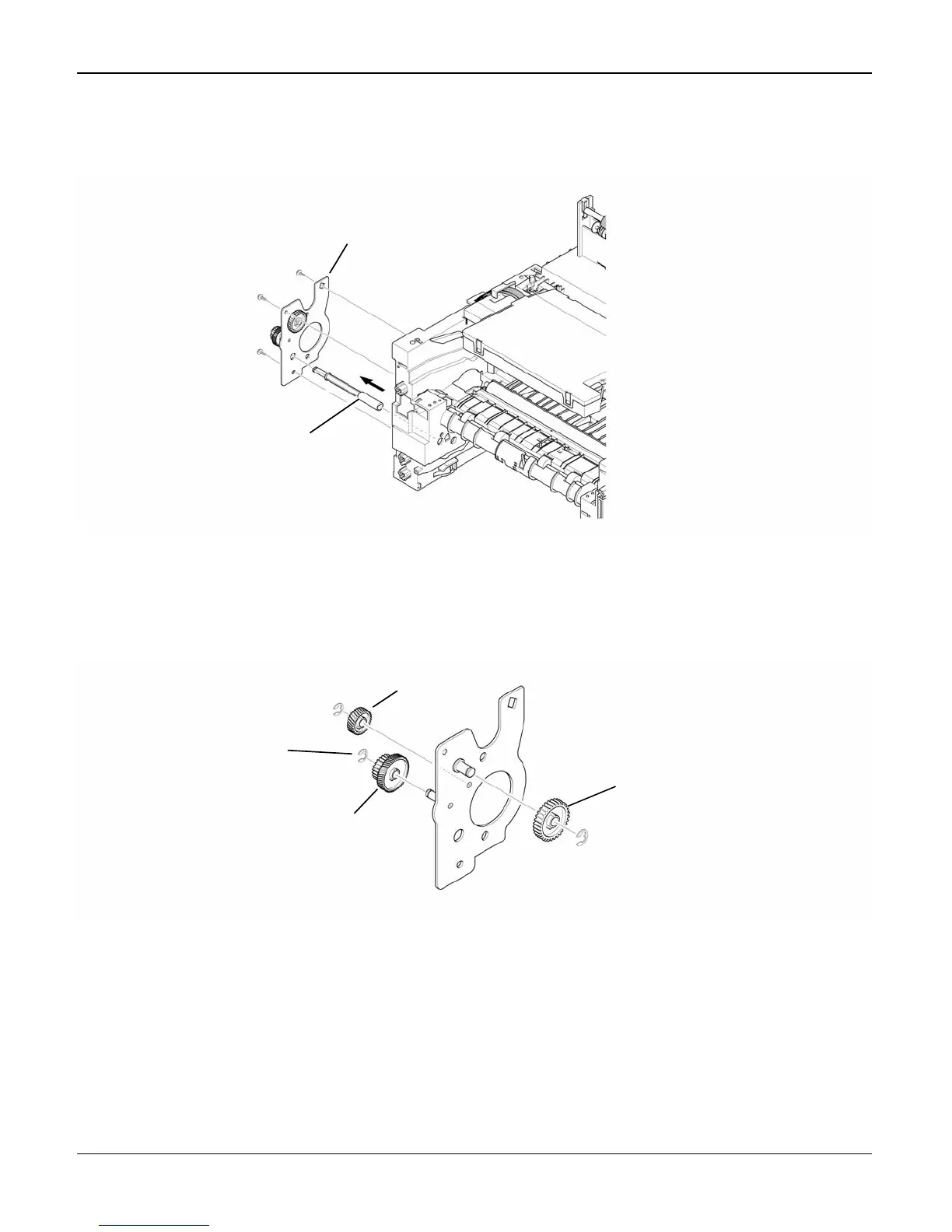

5. Remove the three screws securing the Feed Bracket Unit and then remove the Feed Bracket
Unit and Feed 2 Shaft.
Figure 4
6. If necessary, release the three E-Rings. Pull up the Feed 1 Roller from the Bushing, as the
Gears (T2 Idle, Retard, Idle) and then remove the Gears from the Feed Bracket, as shown
below.
Figure 5
Feed bracket unit
Feed2 shaft
Idle gear
E-ring
Retard gear
T2 idle gear
