Repairs and Adjustments
4-50 5/08 Phaser 3435
3. Pull up the Feed Idle Shaft and the Bushes (with Spring).

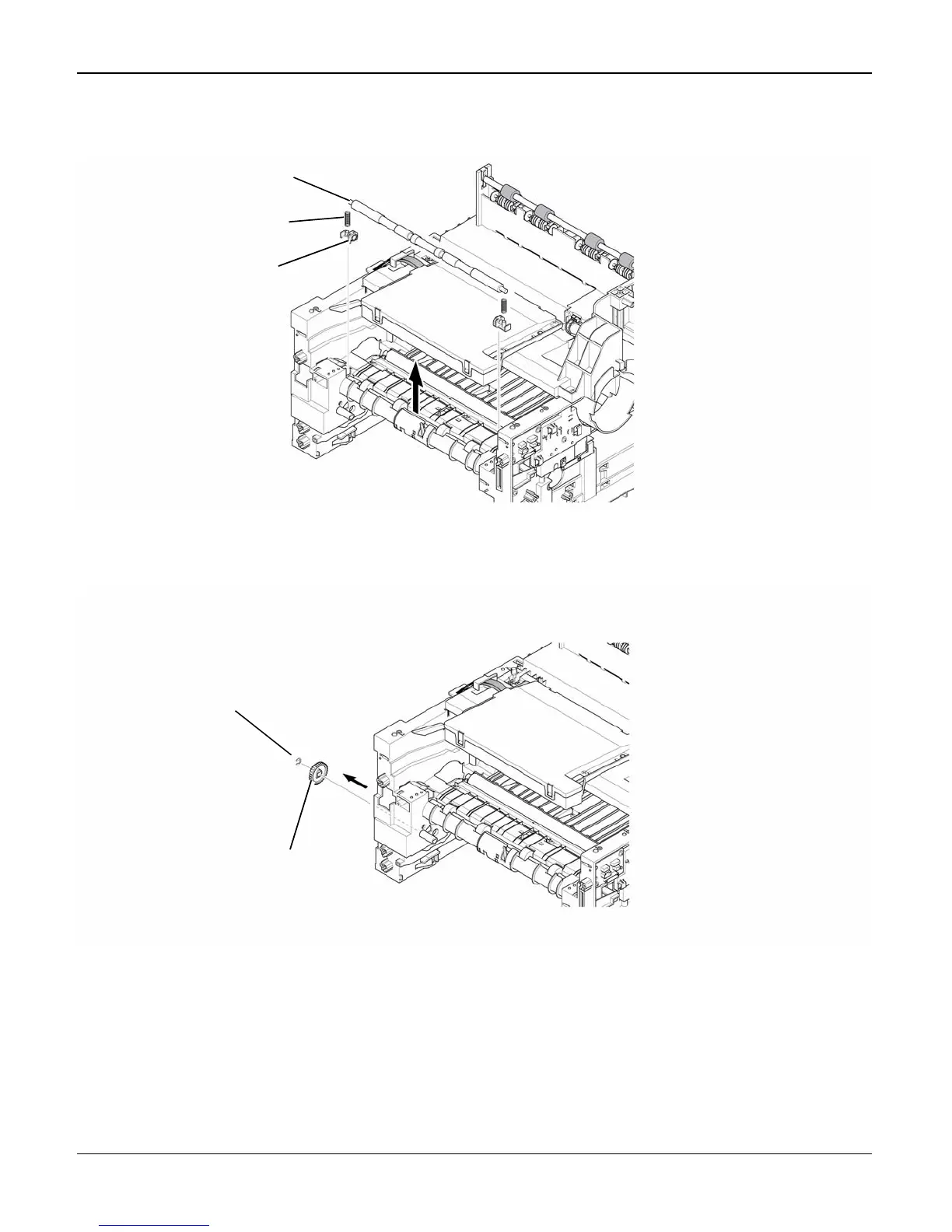

Figure 2
4. Release the E-Ring securing the Feed 2 Gear and remove it.
Figure 3
Feed idle shaft
Spring
Bush
E-ring
Feed 2 gear
