3. Release the CON Harness and REC Harness from the Thermostat and then remove the
three screws securing the Thermostat and remove it.

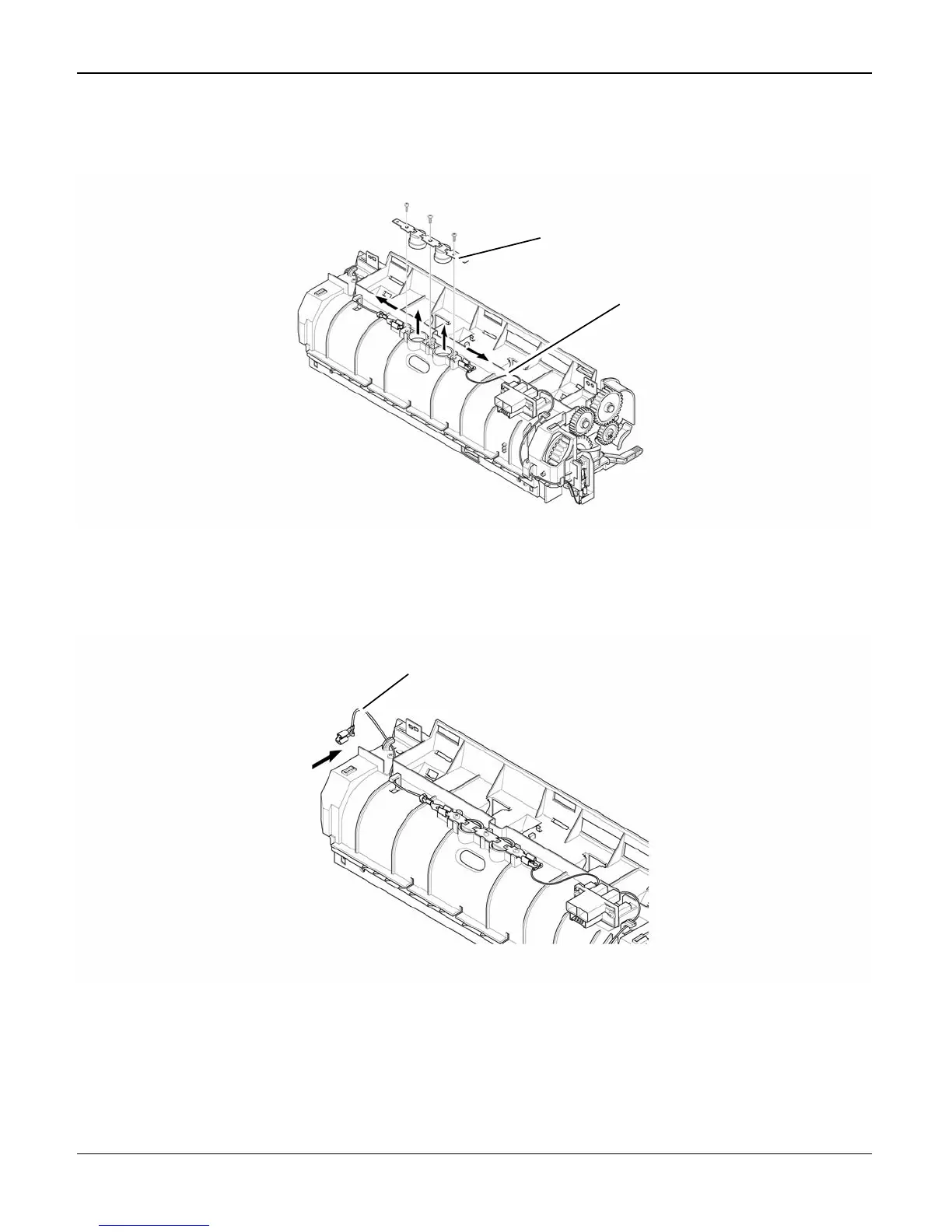

Figure 2
4. To remove the Electrodes, first release REC Harness from the left side of the Electrode and
then release the CON Harness from the right side of the Electrode, as shown below.
Figure 3
Thermostat
CON harness
REC harness
