Repairs and Adjustments
Phaser 3435 5/08 4-37

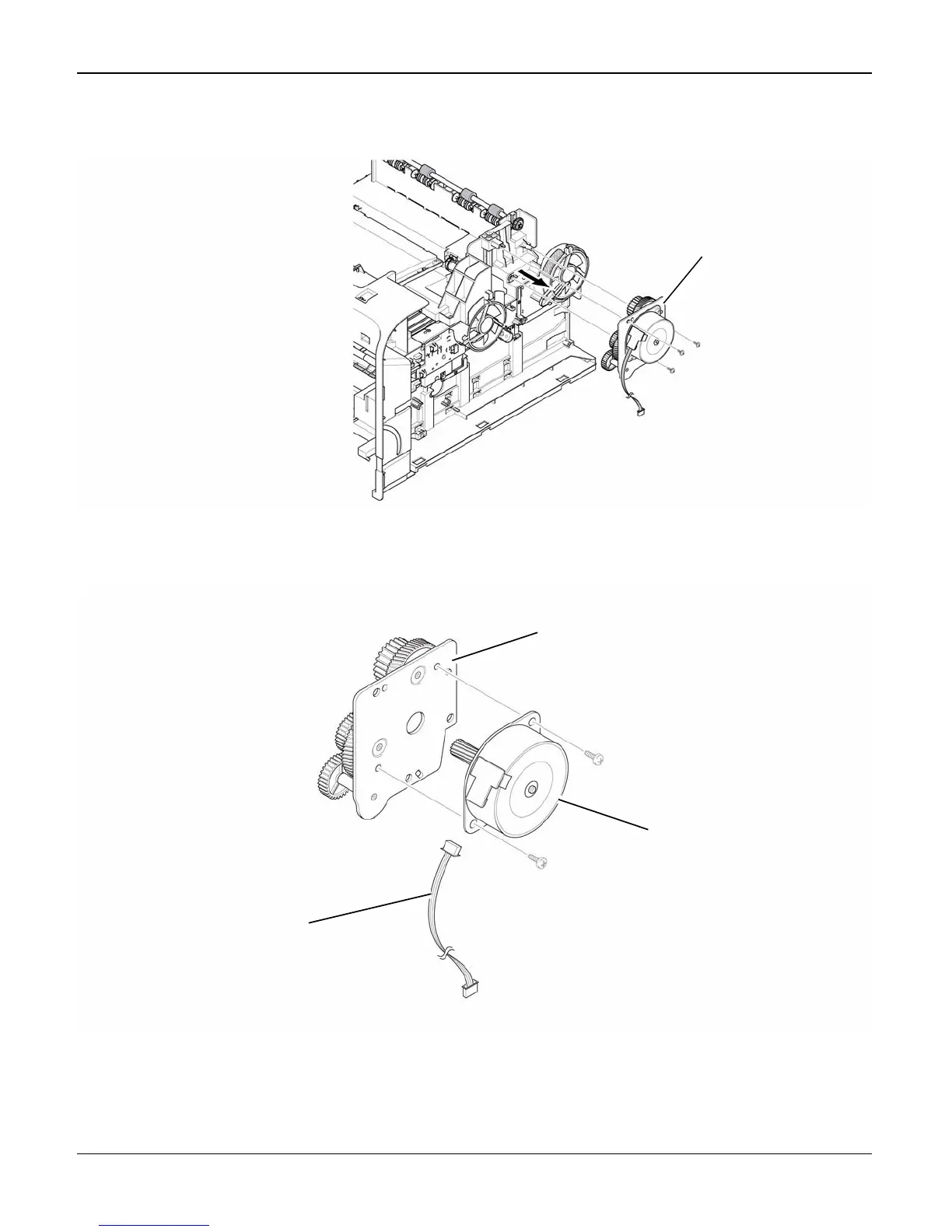

3. Remove the three screws securing the Fuser Drive Assembly and remove it.
Figure 2
4. If necessary, remove the two screws securing the Step Motor and remove it.
Figure 3
Fuser drive assembly
Step motor
Harness
Fuser exit bracket assembly
