Repairs and Adjustments
Phaser 3435 5/08 4-35
3. Remove the two screws securing the Connection PCB and remove it.

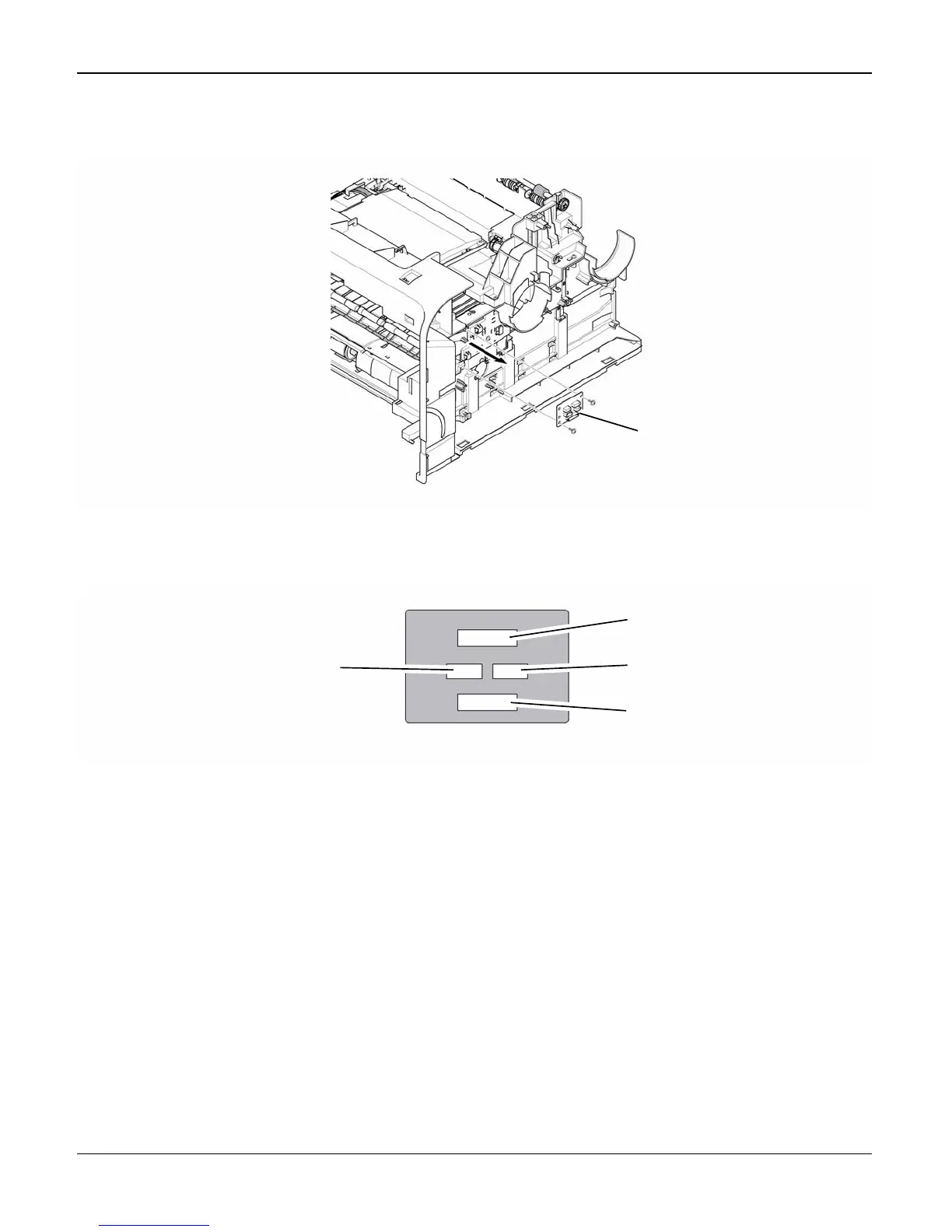

Figure 2
4. The connectors are located, as shown below.
Figure 3
Connection PCB
HVPS
FAN duplex exit motor
Duplex motor Fan main
