Xerox PHASER 3435 Service Manual

General Procedures and Information
6-40 5/08 Phaser 3435

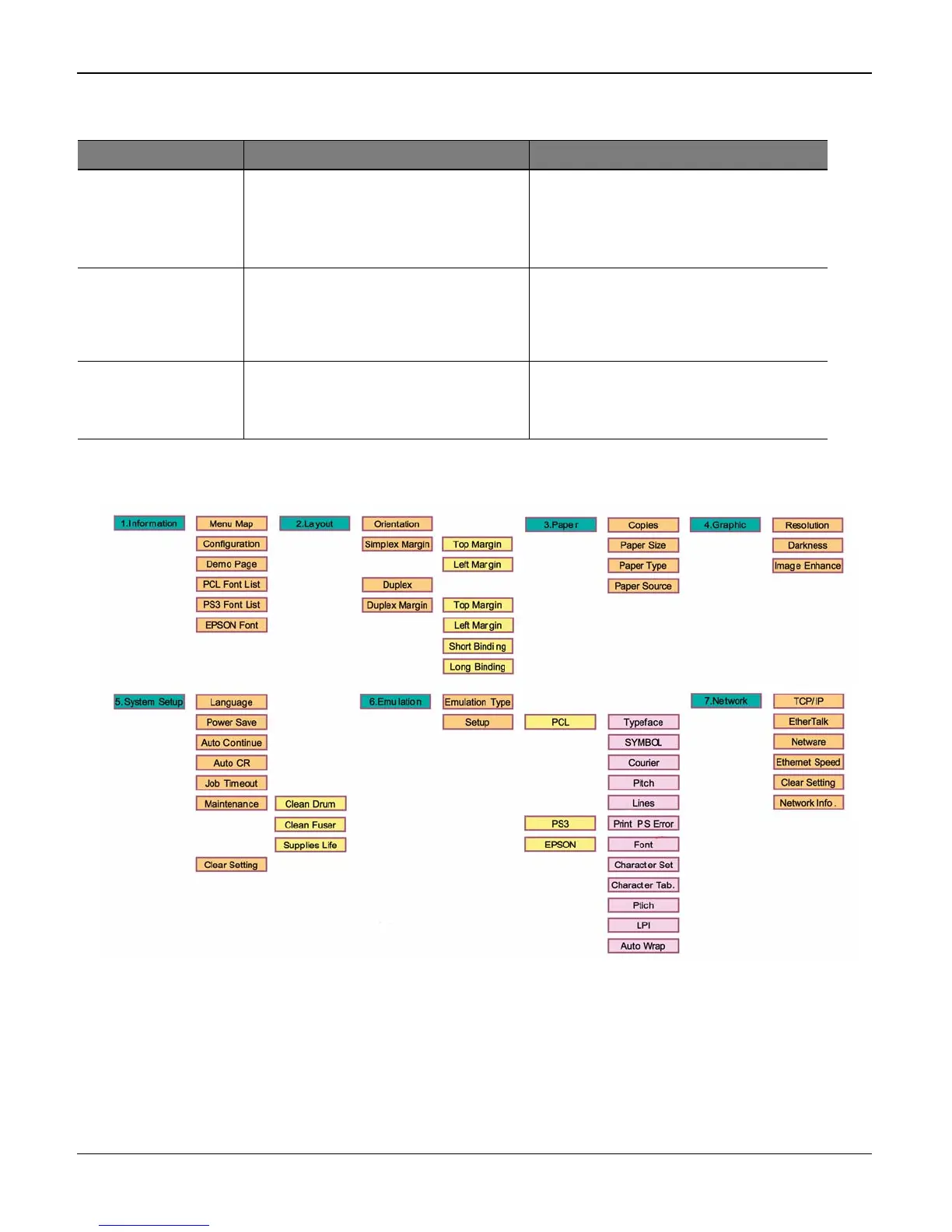

Operation Map
Figure 2
Error Type Legacy models Error Platform model Error
Recoverable Error Error which can be recoverable Ex) Jam,
Paper Empty, etc.
Error which doesn’t need any special user
actions Ex) Paper Mismatching, Manual
printing in MP Tray
Error Just like hardware error which can not be
fixed even if user does special action Ex)
Hsync Error, LSU Error, etc.
Including provider service error which
need some special user or provider action
sEx) Toner Empty, Paper Jam, Paper
Empty, Cover Open, etc.
Assert behaviour LCD model - It shows the task name and
the lines in LCD display
LCD model - It shows the task name and
the lines in LCD display

Xerox PHASER 3435 Specifications

General

Color	No
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	33 ppm
Internal memory	64 MB
Sound power level (standby)	25 dB
Total input capacity	300 sheets
Total output capacity	150 sheets
Maximum input capacity	550 sheets
Media weight (tray 1)	60 - 163 gsm
Paper tray media types	Envelopes
Non-ISO print media sizes	Executive (184 x 267mm), index card, Letter (media size), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Network ready	Yes
Authentication method	IP filtering, 802.1x
Power consumption (active)	526 W
Maximum operating temperature range (T-T)	10 - 32 °C
Maximum duty cycle	80000 pages per month
Power consumption (standby)	36 W
Power consumption (PowerSave)	11 W
Operating temperature (T-T)	50 - 90 °F
Operating relative humidity (H-H)	20 - 80 %
Certification	CB Report (IEC 60950-1/EN 60950-1), Certified to UL 60950-1/CSA 60950-1-03, 1st Edition, CE Marked, EMC Directive 2004/108/EC, FCC Part 15, Class B, Low Voltage Directive 2006/95/EC, R&TTE Directive 1999/5/EC, RoHS Directive 2002/95/EC
