Xerox PHASER 3635 Service Manual

5-4
Phaser 3635MFP
PL 1.12
Draft 4
Parts List

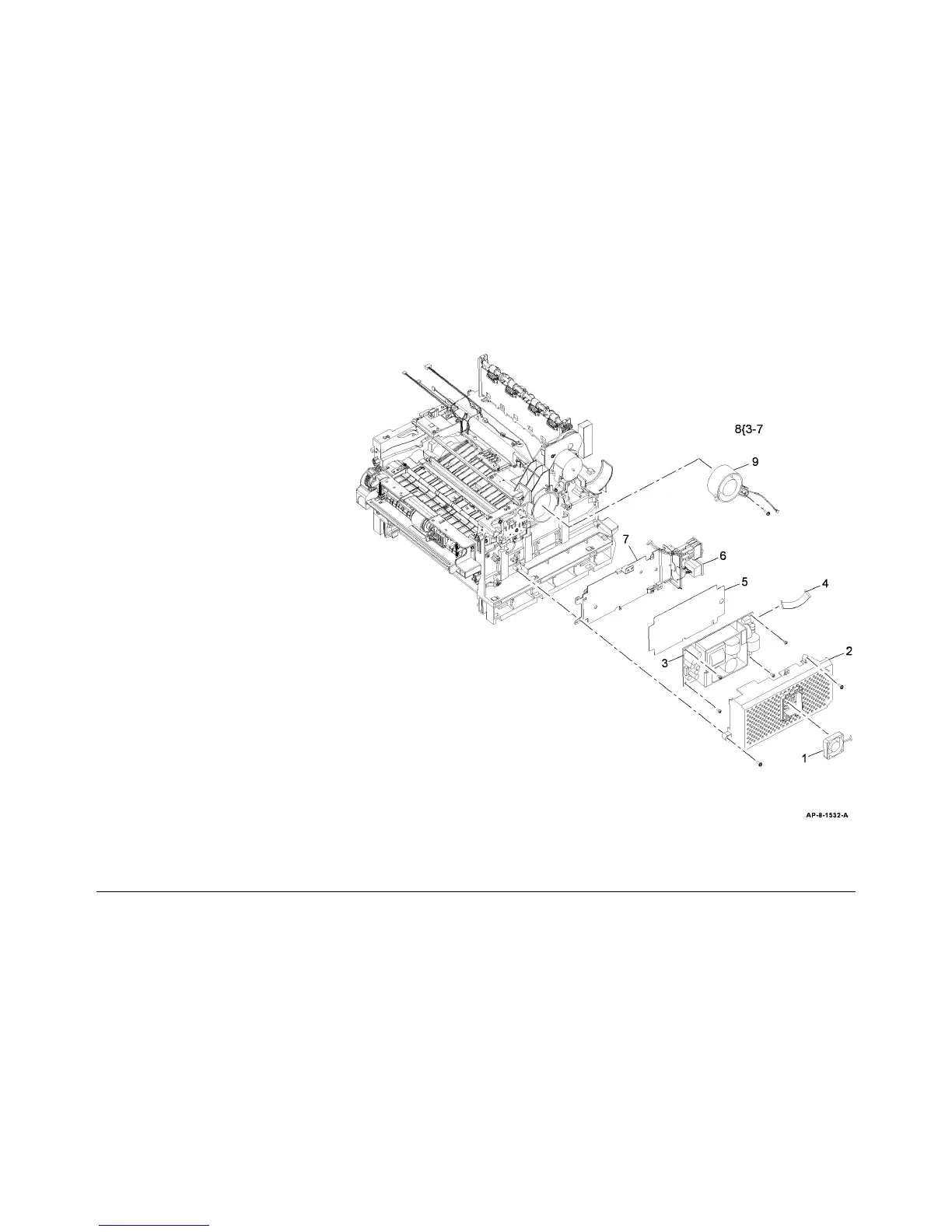

PL 1.12 SMPS
Item Part Description
1 127N07354 SMPS fan
2 – SMPS cover (Not Spared)
3 105N02119 SMPS (110V) (REP 1.1)
– 105N02143 SMPS (220V) (REP 1.1)
4 – SMPS harness (Not Spared)
5 – SMPS insulation sheet (Not
Spared)
6 – Main power socket (Not Spared)
7 – SMPS shield (Not Spared)
8 – SMPS assembly (Not Spared)
9 127N07559 Main fan

Xerox PHASER 3635 Specifications

General

Print Technology	Laser
Print Speed	35 ppm
Print Resolution	Up to 1200 x 1200 dpi
Standard Paper Capacity	550 sheets
ADF Capacity	50 sheets
Duplex Printing	Yes
Scanner Type	Flatbed with ADF
Functions	Print, Copy, Scan, Fax
Processor	360 MHz
Connectivity	Ethernet
Maximum Paper Size	8.5 x 14 inches
Scanner Resolution	Up to 600 x 600 dpi
Network Connectivity	Ethernet
Display	7-inch color touchscreen
Weight	49 lbs
