Xerox PHASER 3635 Service Manual

5-10
Phaser 3635MFP
PL 5.20
Draft 4
Parts List

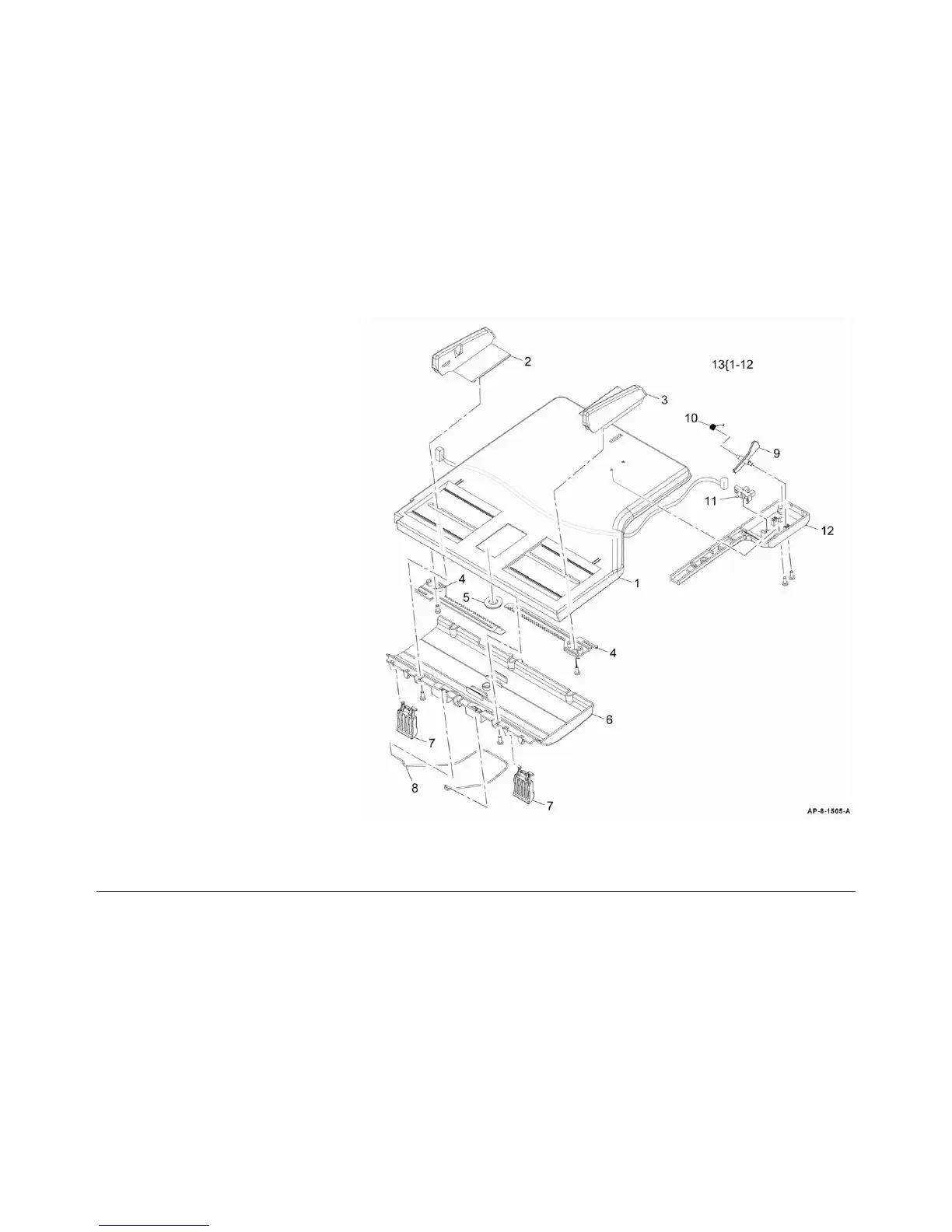

PL 5.20 DADF (3 of 7)
Item Part Description
1 – Input tray (P/O PL 5.20 Item 13)
2 – Document guide (rear) (P/O PL
5.20 Item 13)
3 – Document guide (front) (P/O PL
5.20 Item 13)
4 – Document guide rack (P/O PL 5.20
Item 13)
5 – Pinion gear (P/O PL 5.20 Item 13)
6 – Guide rack cover (P/O PL 5.20 Item
13)
7 – Document guide (P/O PL 5.20 Item
13)
8 – Document guide wire (P/O PL 5.20
Item 13)
9 – DADF paper length sensor actuator
(P/O PL 5.20 Item 13)
10 – DADF paper length sensor spring
(P/O PL 5.20 Item 13)
11 130N01274 DADF paper length sensor (Q05-
120) (REP 5.6)
12 – Sensor assembly cover (P/O PL
5.20 Item 13)
13 002N02741 Input tray assembly (Complete)

Xerox PHASER 3635 Specifications

General

Print Technology	Laser
Print Speed	35 ppm
Print Resolution	Up to 1200 x 1200 dpi
Standard Paper Capacity	550 sheets
ADF Capacity	50 sheets
Duplex Printing	Yes
Scanner Type	Flatbed with ADF
Functions	Print, Copy, Scan, Fax
Processor	360 MHz
Connectivity	Ethernet
Maximum Paper Size	8.5 x 14 inches
Scanner Resolution	Up to 600 x 600 dpi
Network Connectivity	Ethernet
Display	7-inch color touchscreen
Weight	49 lbs
