Xerox PHASER 3635 Service Manual

5-9
Phaser 3635MFP
PL 5.15
Parts List
Draft 4

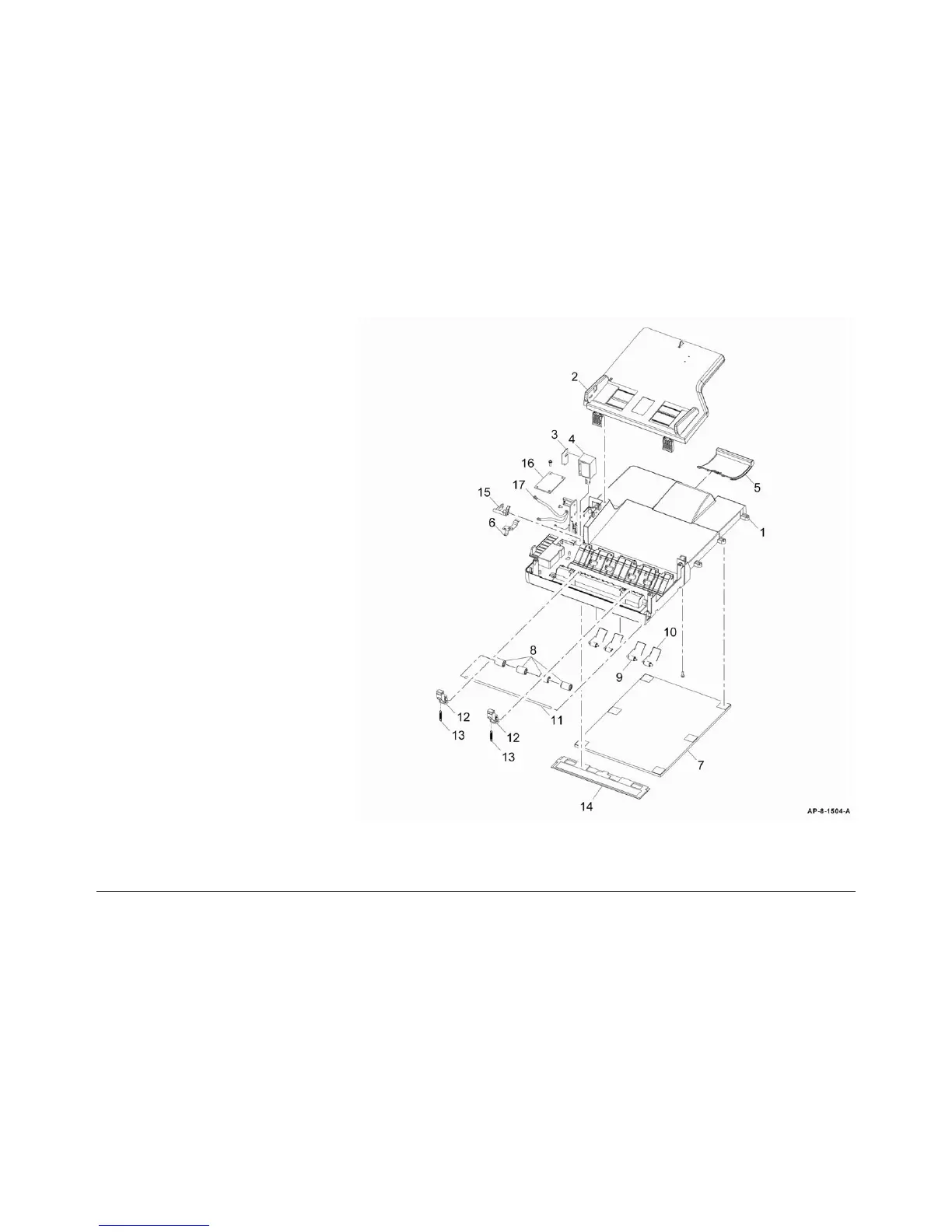

PL 5.15 DADF (2 of 7)
Item Part Description
1 – Lower cover (P/O PL 5.10 Item 1)
2 – Input tray assembly (REF: PL 5.20
Item 13)
3 – Solenoid damper (P/O PL 5.10 Item
1)
4 121N01160 DADF lift solenoid (SOL05-320)
(REP 5.2)
5 – Tray extension (P/O PL 5.10 Item
1)
6 – Ground strip (P/O PL 5.10 Item 1)
7 095N00340 Document pad
8 – Registration roll idler (P/O PL 5.10
Item 1)
9 – Scan idler (P/O PL 5.10 Item 1)
10 – Scan idler spring (P/O PL 5.10 Item
1)
11 – Registration roll shaft (P/O PL 5.10
Item 1)
12 – Nip release lever (P/O PL 5.10 Item
1)
13 – Nip release lever spring (P/O PL
5.10 Item 1)
14 – CVT pad (P/O PL 5.10 Item 1)
15 – Lifting exit lever (P/O PL 5.10 Item
1)
16 140N63301 DADF PWB
17 – DADF PWB harness (P/O PL 5.10
Item 1)

Xerox PHASER 3635 Specifications

General

Print Technology	Laser
Print Speed	35 ppm
Print Resolution	Up to 1200 x 1200 dpi
Standard Paper Capacity	550 sheets
ADF Capacity	50 sheets
Duplex Printing	Yes
Scanner Type	Flatbed with ADF
Functions	Print, Copy, Scan, Fax
Processor	360 MHz
Connectivity	Ethernet
Maximum Paper Size	8.5 x 14 inches
Scanner Resolution	Up to 600 x 600 dpi
Network Connectivity	Ethernet
Display	7-inch color touchscreen
Weight	49 lbs
