Xerox PHASER 3635 Service Manual

4-32
Phaser 3635MFP
REP 10.3
Draft 4
Repairs and Adjustments
REP 10.3 Front Duplex Guide Assembly
Parts List on PL 10.22
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
1. Remove tray 1.
2. Remove the duplex assembly, PL 10.23 Item 18.
3. Remove the DADF, PL 5.10 Item 1.
4. Remove the print cartridge, PL 9.10 Item 1.
5. Carefully lift the machine so that it rests on the rear cover.
6. Remove the tray 1 pick-up roll, PL 10.22 Item 14 by releasing the tab from the notch in the
shaft.
7. Prepare to remove the front duplex guide assembly, Figure 1.
Figure 1 Preparation

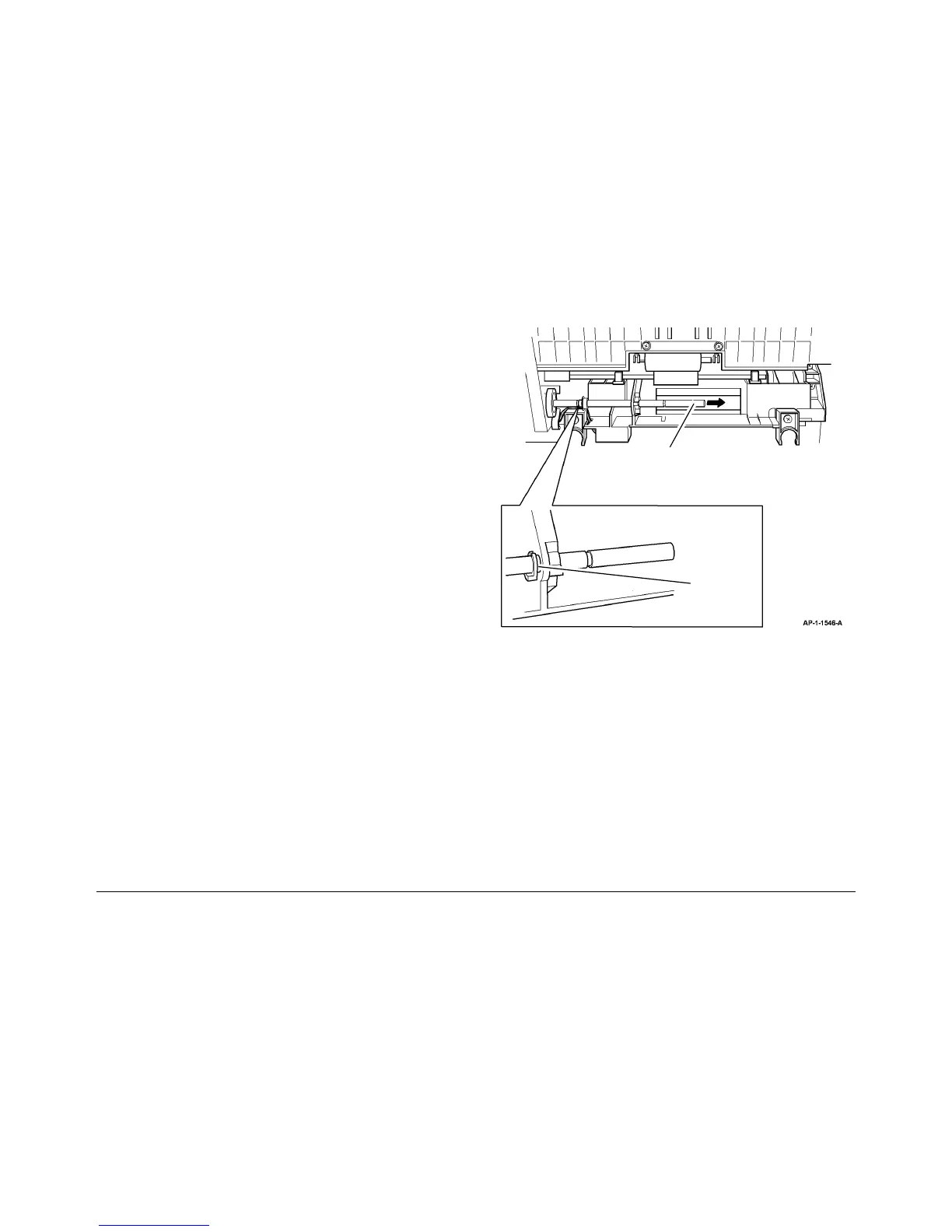

8. Remove the front duplex guide assembly, Figure 2.
1
Remove the
KL-clip.
2
Slide the shaft to the right to disengage the
cam from the follower.
