Xerox PHASER 3635 - Store File Procedure

5-22
Phaser 3635MFP
PL 8.20
Draft 4
Parts List

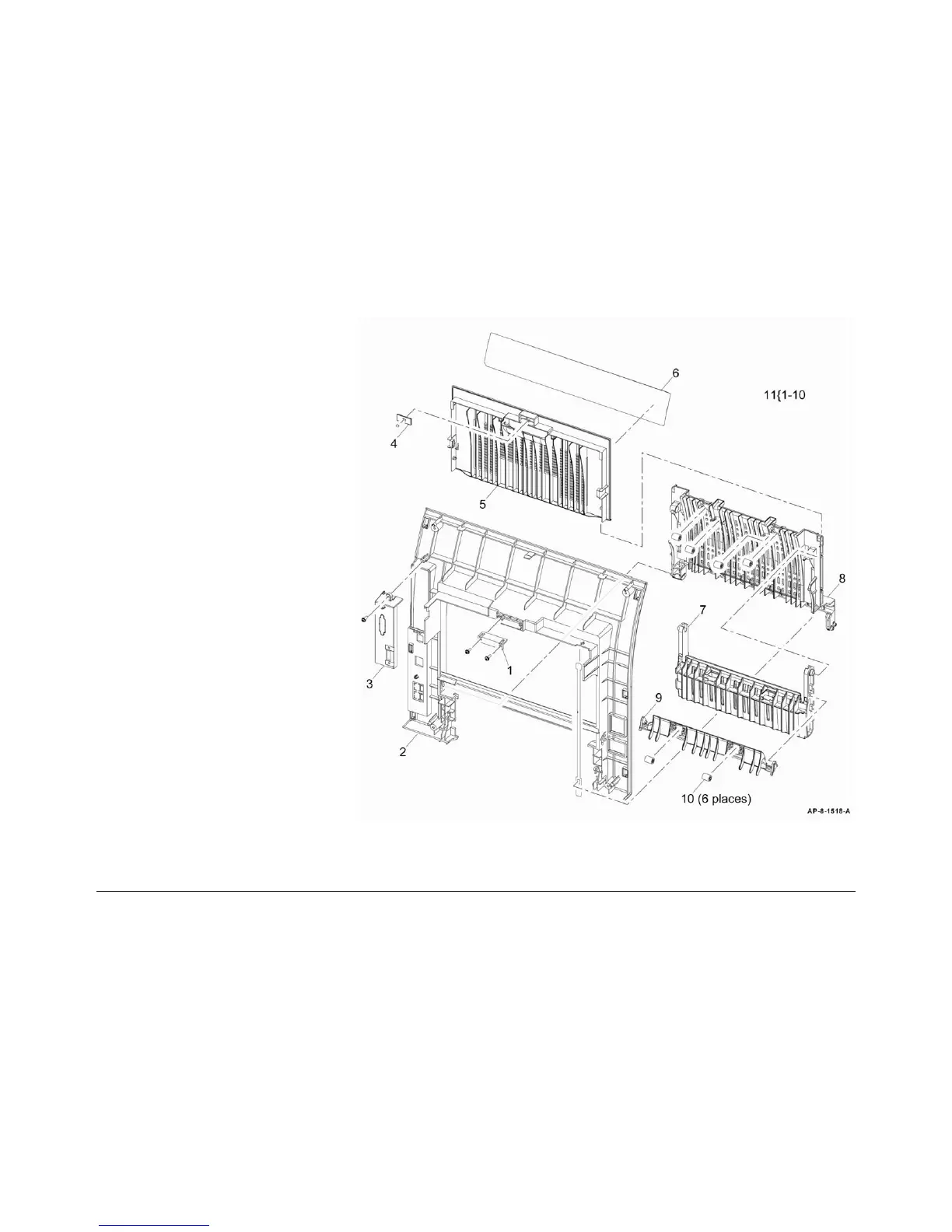

PL 8.20 Rear Cover Assembly
Item Part Description
1 – Magnet (P/O PL 8.20 Item 11)
2 – Rear cover (P/O PL 8.20 Item 11)
3 – Sub panel cover (P/O PL 8.20 Item
11)
4 – Magnet catch (P/O PL 8.20 Item
11)
5 – Face up cover (P/O PL 8.20 Item
11)
6 – Label (P/O PL 8.20 Item 11)
7 – Fuser output guide (P/O PL 8.20
Item 11)
8 – Rear stacker (P/O PL 8.20 Item 11)
9 – Duplex gate (P/O PL 8.20 Item 11)
10 – Idler (P/O PL 8.20 Item 11)
11 002N02716 Rear cover assembly (Complete)
