Xerox PHASER 3635 Service Manual

5-29
Phaser 3635MFP
PL 10.22
Parts List
Draft 4

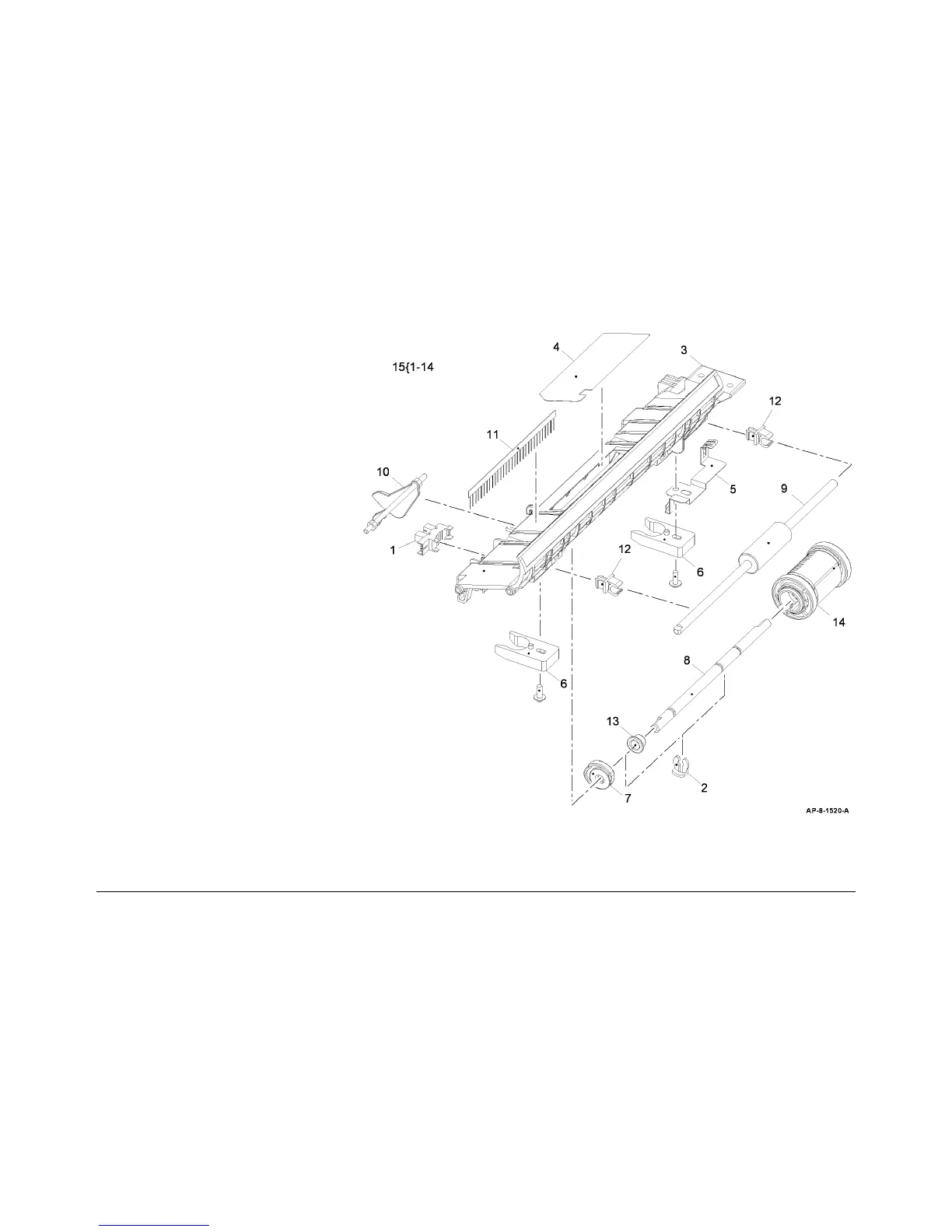

PL 10.22 Front Duplex Guide
Assembly
Item Part Description
1 130N01274 Tray 1 paper empty sensor (Q07-
110)
2 – KL-clip (P/O PL 10.22 Item 15)
3 – Front duplex guide (P/O PL 10.22
Item 15)
4 – Sheet guide (P/O PL 10.22 Item 15)
5 – Static eliminator (P/O PL 10.22 Item
15)
6 – Duplex assembly clamp (P/O PL
10.22 Item 15)
7 – Cam (P/O PL 10.22 Item 15)
8 – Pickup shaft (P/O PL 10.22 Item
15)
9 – Feed roll (P/O PL 10.22 Item 15)
10 – Tray 1 paper empty sensor actuator
(P/O PL 10.22 Item 15)
11 – Static eliminator (P/O PL 10.22 Item
15)
12 – Feed roll holder (P/O PL 10.22 Item
15)
13 – Bearing (P/O PL 10.22 Item 15)
14 022N02343 Tray 1 pickup roll (NOTE)
15 032N00490 Front duplex guide assembly
(Complete) (REP 10.3)
NOTE: HFSI. To reset the HSFI count go to GP 16.
